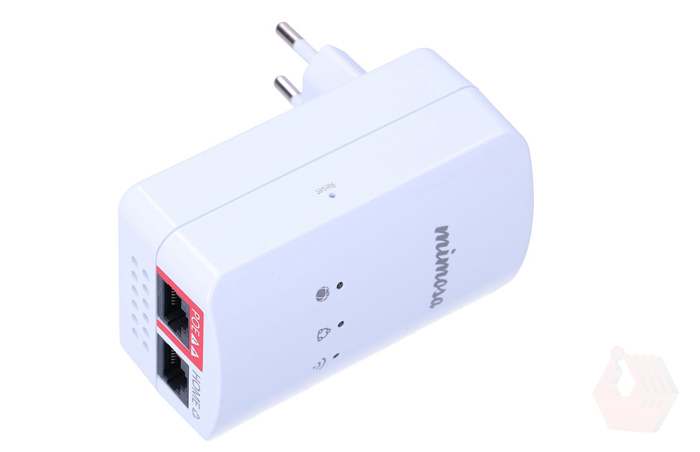

Mimosa PoE Wall Plug 56V, EU

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

he Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.


Product Information

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.



Specifications

Dimensions
86 mm x 51 mm x 33 mm
Weight
0.11 kg
Color
White
Gigabit LAN
Yes
Output Voltage
56 V - 0.275A
Max Current Load
0.275A (15.4 W)
2-Pair Powering
PIN 3/6: +56 V
PIN 1/2: GND
Input Voltage
100–240 VAC ~ 0.8A
50-60 Hz
Input Current
0.5A @ 90 VAC
0.35A @ 240 VAC
Input Frequency
47–63 Hz
Max In-Rush Current
30A for 115 VAC
60A for 230 VAC
Ripple Voltage
600 mV
Protection
Over Current
Over Voltage
Efficiency
84+% - Level VI
Operation Indicator
1 LED
Operating Temperature
-20º C to +50º C
Operating Humidity
5% to 90%
non-condensing
Storage Temperature
-20º C to +70º
Compliance
EMI

FCC Part 15 Class B
EN 55022 Class B

IEC61000


UL/cUL 60950-2
IEC/EN 60905-1 CE, CB

RCM/C-Tick

TUV:GS

Others
WEEE/RoHS
