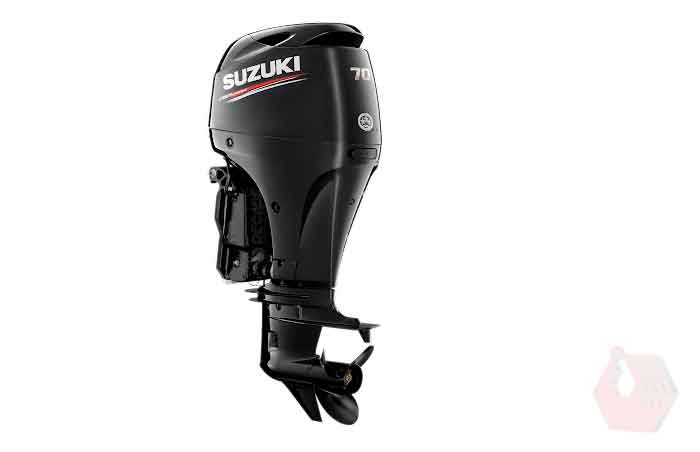

OutBoard Engine 70 HP-4 Stroke Suzuki DF70A
Outboard Motor (OBM Engine)
Engine specifications:
Starting System: Electric
Engine Type: 4-stroke DOHC 16 Valves
Fuel Delivery System: Multi Point Sequential Electronic Fuel Injection
No. of Cylinders: Inline 4
Piston Displacement cm3: 1502cc
Maximum Output: 51.5kW
Full Throttle Operating Range: 5000 – 6000
Steering: Remote
Oil Pan Capacity: 4Lit.
Ignition System: Fully-transistorised
Alternator: 12 V 27 A
Engine Mounting: Shear Mount
Trim Method: Power Trim and Tilt
Gear Ratio: 2.59:1
Gear Shift: F-N-R
Exhaust: Through Prop Hub Exhaust
Introduction
Twelve years after starting the four stroke revolution with its award winning DF70 and DF60 outboards, Suzuki is reinventing the category again with the DF70A. The first of Suzuki's new generation four-strokes, the DF70A is a showcase of advancements and achievements – such as digital sequential electronic fuel injection, a powerful 2.59:1final drive ratio, zero-maintenance self-adjusting time chain and don’t forget the Suzuki Lean Burn Control System. New DF70A models also sport the optional Suzuki Troll Mode System.
TECHNOLOGY USED
POWERFUL
OFFSET DRIVESHAFT
The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.
ADVANTAGES:
Less vibration
More compact engine
Stable steering performance
2-STAGE GEAR REDUCTION
This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing higher torque.
ADVANTAGES:
High propulsive efficiency with large diameter propeller.
Powerful navigation, maintaining propeller rotation even with a larger load.
Tremendous power to turn large diameter propellers, offering quick acceleration.
FUEL EFFICIENT
LEAN BURN
The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions
ADVANTAGES:
Significant improvement in fuel economy in all speed ranges especially at cruising speed.
Fuel costs can be saved thanks to improved fuel economy.
USER FRIENDLY
Suzuki Easy Start System
The Suzuki easy start system no longer require to hold the key until the engine start. Now simply turn the key and release and the starter will stay engaged until the engine starts.
The system also features more precise cylinder detection, fuel injection, and ignition control to deliver smoother and improved starts, more efficient combustion, and greater fuel economy making the outboard more environmentally friendly.
HIGH PERFORMANCE FEATURES
STREAMLINED GEAR CASE AND HIGHLY EFFICIENT PROPELLER
The lower gear case on all four outboard motors utilizes a hydrodynamic design. As the lower unit moves through the water its sleek form reduces drag by up to 36% compared to conventional designs, contributing to faster acceleration and increased speed.
Thanks to the powerful torque delivered with Suzuki’s two-stage gear reduction, these outboards can turn a large diameter propeller. Suzuki engineered a new highly efficient propeller that takes advantage of this torque to provide faster acceleration and higher top speed.
RELIABLE
SELF-ADJUSTING TIMING CHAIN
The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.
ADVANTAGE
Higher durability compared to belt types.
Maintenance-free.
WATER DETECTING SYSTEM (THIS EQUIPMENT IS ONLY FOR DF100B)
It helps protect the engine from water in the fuel using a water detecting fuel filter to alert the operator with both visual and audio warnings when water is present in the fuel.
ADVANTAGE
Can avoid water in fuel, which can lead to issues like poor combustion, lower power output and corrosion.
SUZUKI'S ANTI CORROSION FINISH
Bonding the finish to the outboard’s alloy surface our specially formulated anti-corrosion finish has long been used as an effective treatment against corrosion and is found on all of our outboards.
ADVANTAGE
Higher durability compared to belt types.
Maintenance-free.
INNOVATIVE
TILT LIMIT SYSTEM
A tilt limit system that prevents the outboard from tilting beyond a certain angle.
ADVANTAGE
Prevents damage to the boat or outboard due to excessive outboard tilting.
SUZUKI TROLL MODE SYSTEM (OPTIONAL EQUIPMENT)
A system that can move the boat at a constant speed.
ADVANTAGE
Boat can be moved at a constant speed without operating the throttle.
DUAL ENGINE FLUSH PORTS
Over time, salt, sand, and dirt build up can restrict flow in the cooling system causing damage. To help prevent such buildup, DF100B/90A/80A/70A are equipped with two freshwater flush ports that make flushing the cooling system much easier. With one port located on the port side of the down housing and a second on the front panel, you’ll always have easy access to the flushing system whether the boat is in or out of the water.
SPECIFICATIONS
MODEL | DF70A |
RECOMMENDED TRANSOM HEIGHT mm | L: 508, X: 635 |
STARTING SYSTEM | Electric |
WEIGHT kg*1 | L: 156, X: 160 |
ENGINE TYPE | DOHC 16-Valve |
FUEL DELIVERY SYSTEM | Multi-Point Sequential Electronic Fuel Injection |
NO. OF CYLINDERS | 4 |
PISTON DISPLACEMENT cm3 | 1,502 |
BORE ×STROKE mm | 75 x 85 |
MAXIMUM OUTPUT kW | 51.5 |
FULL THROTTLE OPERATING RANGE rpm | 5,000-6,000 |
STEERING | Remote |
OIL PAN CAPACITY Lit. | 4.0 |
FUEL TANK CAPACITY Lit. | 25 (Optional) |
IGNITION SYSTEM | Fully-transistorized |
ALTERNATOR | 12V 27A |
ENGINE MOUNTING | Shear Mount |
TRIM METHOD | Power Trim and Tilt |
GEAR RATIO | 2.59:1 |
GEAR SHIFT | F-N-R |
EXHAUST Through | Prop Hub Exhaust |
DRIVE PROTECTION | Rubber Hub |
PROPELLER SELECTION | (Pitch)*2 |
All propellers are the 3-blade type | 13"-23" |
