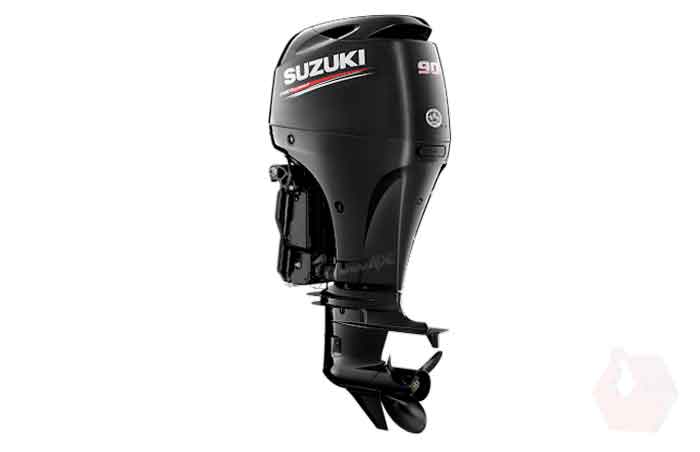

OutBoard Engine 90 HP-4 Stroke Suzuki DF90A
Outboard Motor (OBM Engine)
Features:
Multi Point Sequential Electronic Fuel Injection
Suzuki Lean burn Control System
Suzuki Troll Mode System
Two-Stage Gear Reduction System
Offset Driveshaft
Direct Ignition
Suzuki Easy Start System
Over-Rev. Limiter
Low Oil Pressure Caution
Fully Transistorized Ignition
Timing Chain
Fresh Water Flushing System
Power Trim and Tilt
Tilt Limit
Streamlined Gear Case
Speedometer Pickup of Gear Case
Suzuki Anti-Corrosion System
Features
OVERWHELMINGLY LIGHT, LIGHTEST IN CLASS
Twelve years after starting the four stroke revolution with its award winning DF70 and DF60 outboards, Suzuki is reinventing the category again with the DF90A. The first of Suzuki’s new generation four-strokes, the DF90A is a showcase of advancements and achievements – such as digital sequential electronic fuel injection, a powerful 2.59:1final drive ratio, zero-maintenance self-adjusting time chain and don’t forget the Suzuki Lean Burn Control System. New DF90A models also sport the optional Suzuki Troll Mode System.
COMPACT
100ps from a DF90A engine body
Offset drive shaft for compact body
THE LARGEST REDUCTION GEAR RATIO
2.59:1, the greatest reduction gear ratio in XXkW (100ps). (SUZUKI internal research)
FULL EQUIPMENT
OFFSET DRIVESHAFT
This System which incorporates the Offset Driveshaft feature a first stage reduction between the crankshaft and driveshaft, and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller, Powerful navigation, maintaining propeller rotating even with a larger load and increased power to turn large diameter propellers, offering quick acceleration.
The engine powerhead is positioned closer to the front, moving the outboard’s center of gravity forward.
Less vibration
More compact engine
Stable steering performance
2-STAGE GEAR REDUCTION
This system which incorporates the Offset Driveshaft features a first stage reduction between the crankshaft and drive shaft and a second stage reduction inside the gear case. This design makes a larger gear ratio possible, allowing it to turn a large diameter propeller for high propulsive efficiency while providing higher torque.
High propulsive efficiency with large diameter propeller.
Powerful navigation, maintaining propeller rotation even with a larger load.
Tremendous power to turn large diameter propellers, offering quick acceleration.
FUEL EFFICIENT
The Lean Burn Control System supplies the right fuel and air mixture depending on the navigation conditions.
Significant improvement in fuel economy in all speed ranges especially at cruising speed.
Fuel costs can be saved thanks to improved fuel economy.
SUZUKI EASY START SYSTEM
The Suzuki easy start system no longer require to hold the key until the engine start. Now simply turn the key and release and the starter will stay engaged until the engine starts.
The system also features more precise cylinder detection, fuel injection, and ignition control to deliver smoother and improved starts, more efficient combustion, and greater fuel economy making the outboard more environmentally friendly.
STREAMLINED GEAR CASE AND HIGHLY EFFICIENT PROPELLER
The lower gear case on all four outboard motors utilizes a hydrodynamic design. As the lower unit moves through the water its sleek form reduces drag by up to 36% compared to conventional designs, contributing to faster acceleration and increased speed.
Thanks to the powerful torque delivered with Suzuki’s two-stage gear reduction, these outboards can turn a large diameter propeller. Suzuki engineered a new highly efficient propeller that takes advantage of this torque to provide faster acceleration and higher top speed.
SELF-ADJUSTING TIMING CHAIN
The timing chain runs in an oil-bath so it never needs lubricating, and is equipped with an automatic hydraulic tensioner so it remains properly adjusted at all times.
Higher durability compared to belt types.
Maintenance-free.
SUZUKI'S ANTI CORROSION FINISH
TILT LIMIT SYSTEM
A tilt limit system that prevents the outboard from tilting beyond a certain angle.
Prevents damage to the boat or outboard due to excessive outboard tilting.
SUZUKI TROLL MODE SYSTEM (OPTIONAL EQUIPMENT)
A system that can move the boat at a constant speed.
Boat can be moved at a constant speed without operating the throttle.
DUAL ENGINE FLUSH PORTS
Over time, salt, sand, and dirt build up can restrict flow in the cooling system causing damage. To help prevent such buildup, DF100B/90A/80A/70A are equipped with two freshwater flush ports that make flushing the cooling system much easier. With one port located on the port side of the down housing and a second on the front panel, you’ll always have easy access to the flushing system whether the boat is in or out of the water.
SPECIFICATIONS
| Model | DF90A |
| Transom Height | L: 20 X: 25 (in) |
| Starting System | Electric |
| Weight | L: 344 X: 353 (LBS) |
| Engine Type | DOHC 16-Valve |
| Fuel Delivery System | Multi Point Sequential Electronic Fuel Injection |
| Piston Displacement | 91.7 (1502) (cc) |
| Bore x Stroke | 3.00 x 3.30 (75 x 85) |
| Max Horse Power Output | 90 |
| Operating Range | 5300 - 6300 (RPM) |
| Steering | Remote (Tiller Kit Optional) |
| Oil Pan Capacity | 4.2 (4.0) (L) |
| Ignition System | Solid State Direct Ignition |
| Trim Position | Power Trim and Tilt |
| Gear Ratio | 2.59:1 |
| Standard Propeller | Optional |
| Propeller Selection | 13-25 |
