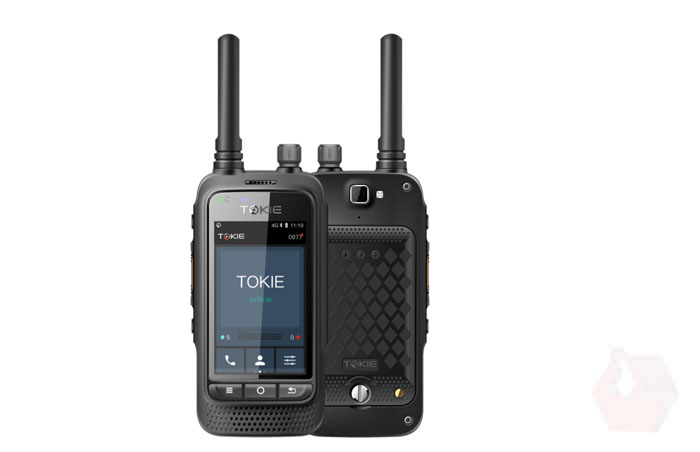

POC Radio TK1100

Professional / Intrinsically Safe Device ● Push-to-talk over WIFI, 2G, 3G, 4G LTE ● 3,600mAh Battery (EX: 2,000mAh) ● Gloves Touch Screen Capable ● Ruggedized Design with IP67 Rating Support external speaker, earphone, UART, USB 2.0 & OTG

WALKIE Talkie not only ensures you the best network access but also protects and future-proofs your communications investment with unmatched network-related benefits.


SMART PTT RADIO SYSTEM

The POC solution uses Push-To-Talk (PTT) over Cellular (PoC) or DMR technology (License Band)  to create a secure, affordable and reliable two-way radio using either cellular data or WiFi, including GPRS, EDGE, 3G / UMTS and 4GLTE.

Communication takes place through the use of handheld units, body-worn cameras and mobile units that fit in vehicles, trucks, taxis, ambulances and buses. Our solution comes with a Dispatch Software that gives the user, the ability to remotely controlling the device camera or microphone, monitoring user’s location, real-time history tracking, creating geo-fences in zones to monitor and control desired user activities and monitoring live videos to react to problems or emergencies at a moment’s notice.

Contact Us

Incomparable integration.

The stand out advantage of the Tokie PTT radio system is that two way radio communication can be deployed almost anywhere with no major fixed costs to the customer other than the rental or purchase of the radio and the cost of the subscription to the service.

The system allows for country wide as well as international coverage to be obtained and uses the cellular networks (4G LTE, 3G, 2G) as well as Simplex and Digital radio infrastructure. Therefore ensuring excellent range of coverage.

4G LTE / DMR Radio

size:119.5 x 61.5 x 23.5 (mm)

FEATURES & BENEFITS

Live Streaming Via 4G LTE

Wireless Cloud Upload

Video Management Solution

Dual Stream Local & Live Recording

GPS Tracking

Comprehensive GEO-Fencing

PTT Communication

Panic Alert System

Guard Patrol Solutions

Voice Recording & History

Loan Worker Functionality

Broadcast Messaging

Cloud base Storage & Workflow

Incident Reporting & Management

Group, Priority, & Individual calls

AES256Encryption

Feature

Description

Operating System

TOKIE customize Android 8.1 Oreo

Hardware Platform

MTK6739 Quad-Core A53 1.5GHz 64bit

Network Type

Support 2G, 3G(WCDMA, TD-SCDMA, C2K), 4G(FDD LTE/TDD LTE)

RAM

1 GB RAM + 8GB ROM / 2G RAM +16G ROM

Display

Corning® Gorilla® Glass 3, TFT 3.1“IPS, 800 x 480

GPS

GPS, GLONASS & AGPS, dual-mode positioning

WIFI

802.11, a/b/g/n, dual-band

Bluetooth

BT4.0

Sensor

G-Sersor, Proximity Sensor, Light Sensor

USB Interface

Micro USB 2.0, support OTG

SIM Card

Micro-SIM single card

Encoding / Decoding Capabilities

H.264 high pro , fi le, 720P 30FPS

Speaker

36 MM 2.0W @ 90dB

Microphone

Sensitivity -42dB

Rear Camera

8  Million Pixels Camera

Front Camera

2  Million Pixels Camera

Video Quality

Support 720P video recording

Indicator LED

Single 3-colors LED

M6

Support External Speaker, Mic, Earphone, DMR Talking, UART

Working Environment

Temperature -20 °C - 60 °C, humidity 20% - 90%

Degree Of Protection

IP67, water & dust resistance, anti-drop 1.5 meters

Weight

210 g, with battery

Battery Capacity

3,600mAh, replaceable

Duty Cycle Time

About 12 hours (5-5-90)

Size

119.5 mm x 61.5mm x 23.5mm



Feature

Description

Frequency Range

VHF 136 ~ 174 MHz / UHF 400 ~ 480 MHz (Optional)

Frequency Stability

± 0.5ppm

Number of Channels

16 (Analog/Digital)

Channel Spacing

12.5KHZ / 25KHZ (Analog), 12.5KHZ (Digital)

Vocoder

AMBE3000, WT3000, AMBE1000, SELP, AVDS

MIL-STD

MIL-STD 810D and E

Audio Distortion

Less than 10%

Audio Power

2 Watt

DMR

TIER 1 & TIER 2

Transmitting Power

Low: 0.5W, High: 2W

Antenna Impedance

50Ω

Sensitivity

0.22 mV (Typical)

DMR Antenna Type

External glue rod antenna

Support

Direct Mode, TDMA, Frequency Scanning, DTMF(Analog), CTCSS/CDCSS

License Process

User Must have License to Used UHF/VHF radio in Nepal. Decade International can Help you for document  incase you need assistance. UHF/VHF License need be renew each fiscal year, Frequency amount pay as per used Radio sets quantity and used Power.

Software allows users to communicate, message, track and provide customer support  services/ Manage services from a central location. PC Dispatcher enables you to communicate with, locate, manage and ensure the safety of your mobile workforce.

A geofence is a virtual perimeter for a real-world geographic area. A geo-fence could be dynamically generated—as in a radius around a point location, or a geo-fence can be a predefined set of boundaries.

The POC radio tells you where it is and where it has been. Radio updates every PTT Point every 60 seconds with its auto-refresh feature. It shares the Radio location on the map. You can know the exact location of your workforce Decade POC radio.

Abell POC recorder w/ secure voice, data & call recording. Analyze & monitor radio user movements: GPS recording, channel activity, data export & more with extended memory card as your choose. Only control can access on that as you need.

* Server charge and GSM Network cost need extra for to operate this unit.
