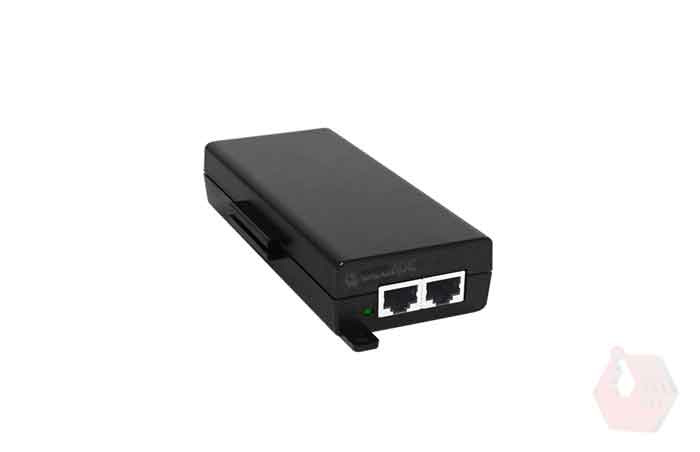

POE injector 48V-AC (POE‐PG30I) CERIO

30Watt Internal Power Gigabit POE+ Injector, Shingle-Port POE built-in Power Supply, DC 56V Standard POE Voltage 30W POE power transmission at 100m Distance

Features:

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T standards.

  • Supports 10/100/1000Mbps Gigabit RJ45 Ethernet Connection.

  • Supports PIN 1/2,3/6 and 4/5,7/8 power pin.

  • Internal power design and supports 56V PoE+ output.

  • Provides 802.3af/at (Passive) POE power level and PoE max power up to 30Watt Class4 PoE+ output.

Product Introduction

The CERIO POE-PG30I is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. With Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Moreover, it supports PIN 1/2,3/6 and 4/5,7/8 power pin designed, no matter the PD devices is designed Type-A or Type-B all can supply power automatically. The output power will be dependent on the power rating of the power supply that one chooses to use. It brings a great economic benefits to the monitoring surveillance system.






Features:

  • Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T standards.

  • Supports 10/100/1000Mbps Gigabit RJ45 Ethernet Connection.

  • Supports PIN 1/2,3/6 and 4/5,7/8 power pin.

  • Internal power design and supports 56V PoE+ output.

  • Provides 802.3af/at (Passive) POE power level and PoE max power up to 30Watt Class4 PoE+ output.

  • Support PSE / PoE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.

  • Over Current Protection and Short-circuit Protection.

  • Supports Desktop, Wall mounting and Units Combination for easy to bundles organize the Ethernet cables.

POE Application


POE Hardware Overview



Standards & Hardware Specifications

Standard
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Network Media
10BASE –T: UTP Cat. 3 or up
100BASE-TX : UTP Cat. 5 or up
1000BASE-T: UTP Cat. 5 or up
Data Transfer Rate
10/100/1000Mbps (Half-duplex), 20/200/2000Mbps (Full-duplex)
PoE Type
Passive POE
Data PIN
PIN 1/2,3/6 & 4/5,7/8
Power PIN
End-span (Type-A): PIN 1/2,3/6
Mid-span (Type-B)
PIN 4/5,7/8
Ethernet Connector
RJ-45 x1 : Data
RJ-45 x1
Power + Data
Power Interface Output
RJ45 Passive PoE+ 56V Out
Input
AC In
ESD Protection
Supports ESD (Electro Static Discharge)
Over Voltage protection and Short Circuit Protection

Environmental & Mechanical Characteristics

Max PoE Power
30Watt
Power Requirement
AC Power Code
PoE Output Voltage
56Volt
Input Voltage AC
 100~240V, 50-60Hz
LED SystemPower (Green)
Operating Temperature
0° to 50° C
Storage Temperature
-40° to 70° C
Storage Humidity
5% to 90% non-condensing
Dimension ( W x H x D )
67.5*155*34mm
Weight ( g )
181g
Form Factor
Wall mounting, Desktop, Units Combination
Case of material
Plastic
Production Location
TW
Certifications
FCC ,CE, RoHs compatible

POE Vs. Deployment Applications
