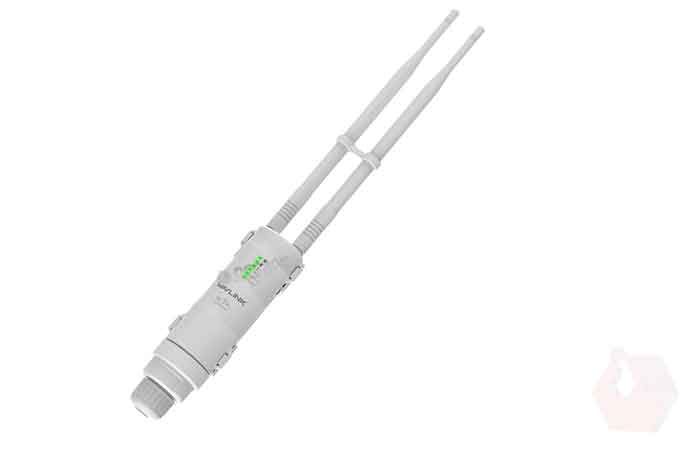

Wavelink:AC600 High Power Outdoor Wireless AP/Range Extender/Router with PoE AP WL-WN570HA1

The AC600 AP/Router is mainly used for providing free WiFi service in big area such as factory, community, street or etc. The AP/Router can take an existing 2.4GH z or 5GHz wireless signal, repeater and extend it to a longer range where it is too far away for the router or access point to reach.

Features:

  • Complies with IEEE 802.11 a/b/g/n/ac standards

  • Dual-Band Speed up to 2.4GHz 150Mbps, 5GHz 433Mbps

  • Weatherproof RJ45 Connector, Integrated Passive Power over Ethernet (PoE)

  • Passive PoE Support for Flexible Deployment

  • Provides high performance at a Long-Range Links, depending on its antenna

  • Features up to 1000mW of power and an enhanced receiver design

  • Robust weatherproof case withstands harsh outdoor conditions

  • Operation Modes: Router, AP, Repeater

  • Maximum Security with WAP, and WPA2

  • Support 3 LEDs Wireless Signal Strength

  • Build in lightning arrester (15kV ESD)

 Introduction

The Wavlink 2.4G 300Mbps Outdoor Access Point provides a cost-effective solution for outdoor wireless network applications. With 1000mW of power and high gain omnidirectional antennas, WN570HN2 can deliver a long distance wireless data transmission. Coupled with weatherproof enclosure, 15KV ESD, 4KV lighting protection, it never be easier to enjoy a stable connection, even when in intense outdoor environments.





Features:

  • The 300Mbps AP/Router is mainly used for providing free WiFi service in home-use and big area such as garden,office, factory, community, street or etc.

  • The AP/Router can take an existing 2.4GHz wireless signal, repeater and extend it to a longer range where it is too far away for the router or access point to reach.

  • Build-in High Power Technology. Support Repeater, AP, router Mode.

  • Features up to 1000 mW of power and enhanced receiver design.

  • Robust weatherproof case with stands harsh outdoor conditions.

  • Build in lighting arrester.

  • Support 3 LEDs wireless signal strength.

Flexible Installation with Power over Ethernet (PoE).

PoE Power Supply simplifies the setup of the High Power Outdoor Wi-Fi Access Point by combining your power and data connection into a single cable. The DC Adapter provides power and network access through your home or business router or network connection and combines them into a single RJ-45 connection. This makes outdoor deployment simple and fast.


  • TECHNICAL SPECIFICATIONS
  • Model

    WN570HN2

  • Ports

    1 x 10/100Mbps WAN/LAN

  • Buttons

    1 x Reset button

  • LED

    1 x Power

    1 x WAN/LAN

    1 x WiFi

    3 x Signal

  • Power Supply

    DC24V / 0.5A Power over Ethernet ( Passive PoE)

  • Rated Voltage / Frequency

    input:100-240 Va.c. 50/60Hz

  • DIMENSIONS
  • Unit Dimensions

    180mm x 50mm x 50mm ( L x W x H )

  • WIRELESS
  • Standard

    IEEE 802.11a/b/g/n

  • Speed

    IEEE 802.11n: up to 300Mbps

    IEEE 802.11g: 54Mbps

    IEEE 802.11b: 11Mbps

    IEEE 802.11a: up to 54Mbps

  • Frequency Band

    2.4GHz

  • Wireless Security

    WPA-PSK/ WPA2-PSK encryption

  • Antennas

    2 x 7dBi Omni Directional Antennas

  • PACKAGE
  • In The Box

    1 x Wi-Fi AP/Range Extender/Router

    2 x Directional Omni Antenna

    1 x RJ45 Networking Cable

    1 x Power Adapter

    1 x POE Converter

    1 x Main body holder

    2 x Cable ties

    1 x Screw fittings

    1 x Quick Guide
