AC1200 Dual-band High Power Outdoor Wireless AP/Range Extender/Router with PoE and High Gain Antennas

This product is no longer available.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Introduction

WL-WN572HP3 Outdoor Point To Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features up to 1000mW wireless transmission power and has a built-in 4x7dBi Detachable Omni Directional Antenna which provides an efficient way to pick up and maintains a stable signal for hundreds of yards of wireless network connection.



Features

• IP65-rated weatherproof housing that ensures continued operation in climates of extreme cold, heat or continuous moisture; Robust weatherproof case withstands harsh outdoor conditions;

• Withstanding broad ranges of humidity and temperature (-30°C~70°C) (-22°F~158°F); 15KV ESD, 4KV lightning protection, ensure stable connection in harsh outdoor conditions.

•The next generation of Wi-Fi, leading 802.11ac standard, complies with IEEE 802 11 ac/a/b/g/n standards

• Dual-Band Speed up to 2.4GHz 300Mbps, 5GHz 867Mbps

• Weater-Proof RJ45 Connector, Integrated Passive Power over Ethernet (PoE)

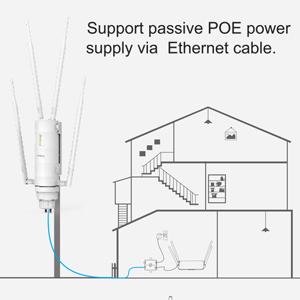

• Passive PoE Support for Flexible Deployment

• Provides high performance at a Long-Range Links, depending on its antenna.

• Features up to 1000mW of power and an enhanced receiver design

• Robust weatherproof case withstands harsh outdoor conditions.

• Operation Modes : AP , Repeater, Esaymeshr

• Maximum Security with 802.1X, WAP, and WPA2

• Support 3 LEDs Wireless Signal Strength

• Build in lightning arrester (15kV ESD)

Withstand Harsh Outdoor Climates

 The Wavlink 2.4G 300Mbps Outdoor Access Point provides a cost-effective solution for outdoor wireless network applications.



Built-in High Power Amplifiers

With 1000mW of power, high gain omnidirectional antennas, and up to 300Mbps Wi-Fi speeds with 2 x 2 MIMO technology, 570HN2 can ensure a stable connection and deliver a long distance wireless data transmission.

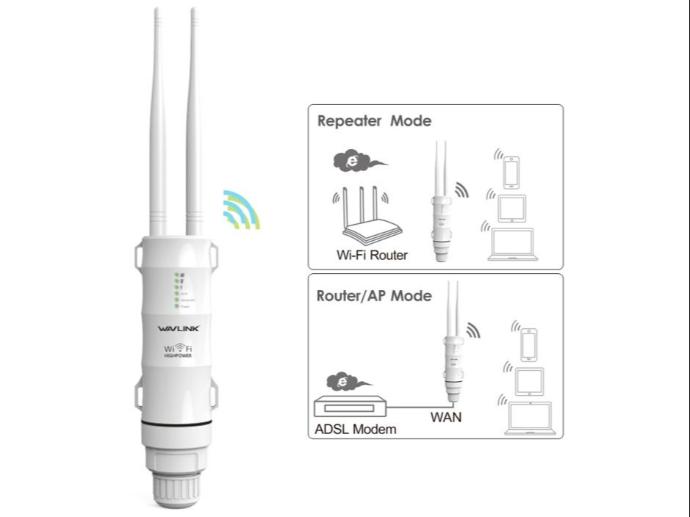

Dual Band Repeater

Supports multiple operation modes such as Router, Wireless AP, Repeater, WISP modes, you can select one of modes to meet different environments.

How it works

Place the straps through the slots on the back of the AP and then around the pole Tighten the straps

Connect one end of an LAN cable to the POE port of the provided Power injector and the other end of the LAN cable to the LAN port of the AP.

Connect the LAN port of the power inject t a PC using another LAN cable.

Plug the power adapter into a wall socket.

  • TECHNICAL SPECIFICATIONS
  • Model

    WN570HN2

  • Ports

    1 x 10/100Mbps WAN/LAN

  • Buttons

    1 x Reset button

  • LED

    1 x Power

    1 x WAN/LAN

    1 x WiFi

    3 x Signal

  • Power Supply

    DC24V / 0.5A Power over Ethernet ( Passive PoE)

  • Rated Voltage / Frequency

    input:100-240 Va.c. 50/60Hz

  • DIMENSIONS
  • Unit Dimensions

    180mm x 50mm x 50mm ( L x W x H )

  • WIRELESS
  • Standard

    IEEE 802.11a/b/g/n

  • Speed

    IEEE 802.11n: up to 300Mbps

    IEEE 802.11g: 54Mbps

    IEEE 802.11b: 11Mbps

    IEEE 802.11a: up to 54Mbps

  • Frequency Band

    2.4GHz

  • Wireless Security

    WPA-PSK/ WPA2-PSK encryption

  • Antennas

    2 x 7dBi Omni Directional Antennas

  • PACKAGE
  • In The Box

    1 x Wi-Fi AP/Range Extender/Router

    2 x Directional Omni Antenna

    1 x RJ45 Networking Cable

    1 x Power Adapter

    1 x POE Converter

    1 x Main body holder

    2 x Cable ties

    1 x Screw fittings

    1 x Quick Guide
