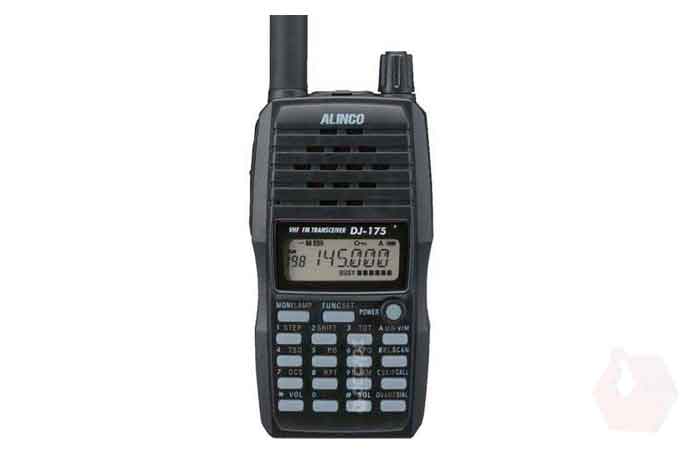

ALINCO DJ-175
Alinco has created a new 2 meter HT that sets new standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that’s“ user friendly” and the 5-watt output battery is standard.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Introduction
The Alinco DJ-175T 2 meter HT sets standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that is user friendly and the 5-watt output battery is standard. Be prepared for virtually any selective calling situation or gaining access to repeaters with 39-tone CTCSS, 104 DCS, Tone-bursts and DTMF encoding, all included at no extra cost. Best of all, DJ-175 retains the proud Alinco tradition of quality construction and excellent value. Enjoy extended receive coverage from 136-173.995 MHz.
Features
Scanning
200 Memories
NiMH Battery
Backlit Display/Keypad
Encode/Decode
Tone Bursts
Wire Cloning capable
5/2/0.5 Watt output
Each DJ-175T comes standard with: flexible SMA antenna, EBP-72 NiMH battery pack and EDC-146 wall adapter and EDC-165 NiMH drop-in trickle charge stand.
Specifications:
| Frequency Coverage | TX: 144 - 147.995 MHz RX:136 - 173.995 MHz |
| Signal Type | F3E [FM] |
| Receiver System | Double Conversion Super-heterodyne |
| Channel Step | 5, 10, 12.5, 15, 20, 25, 30 kHz. |
| Memory Channels | 200 memory channels+ 1 call channel |
| Tone Encoder | 39 tone encoder standard |
| Deviation | ± 5 kHz |
| TX Output | 5/2/0.5 Watts |
| TX Spurious emissions | Not more than -60dB |
| Frequency Stability | ± 5 ppm (-10 to +50° C.) |
| Sensitivity | Better than -15 dBu (12dB SINAD) at 145 MHz |
| Selectivity | ± 6 kHz -6dB |
| I.F. | 1st = 21.7 MHz, 2nd = 450 kHz |
| Power Supply Requirements | 7.2VDC via battery only |
| Current Consumption | TX: 1500 mA, RX: 250 mA, Standby 70, Batt Save: 30mA |
| Antenna Jack | SMA |
| Size | 2.28 x 4.23 x 1.43 inches 8.7 oz without projections |
