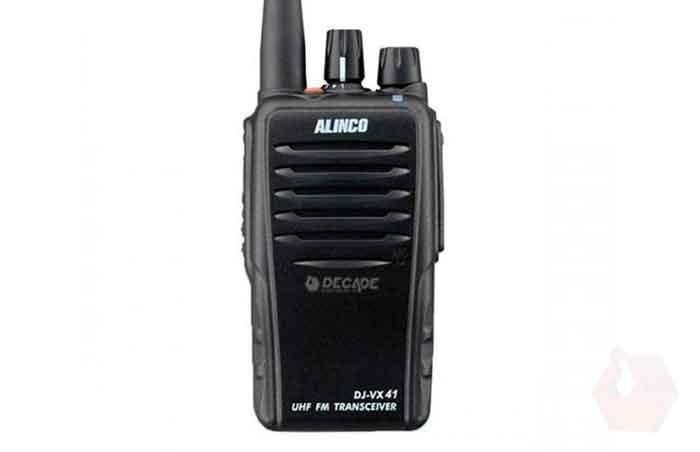

ALINCO DJ-VX41E UHF Transreceiver

    24,000.00 ₨ 24,000.00 ₨ 24000.0 NPR

    24,000.00 ₨

    This combination does not exist.

    Add to Cart

    ALINCO MADE in JAPAN, UHF handheld transceivers a 128 channels to program operating parameters with IP-67 compatible water/dust proof , rechargeable 1800mAh Li-Ion pack, desktop quick-charger, belt clip and high-performance whip antenna, VOX, Voice Encryptions / Compander, Scan / Skip, Various Alarm features and more!


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Introduction

    The radio station is equipped with a dust-proof case that meets mil-std-810ip67 standards, a powerful internal speaker and a lithium-ion battery with a capacity of 1800 mAh.

    The full frequency range of 400-470 MHz will allow you to contact any radio station suitable in frequency without requiring special skills for the user.

    The presence of CTCSS and DCS tones, as well as the built-in analog Scrambler will make the work of alinco available in different groups at the same frequency, without interfer.







    Features:

    • Rugged,polycarbonate body resists rain and dust (1P67 compatible)

    • 128 memories (l6ch x 8groups) to program operating parameters and tone-squench tones

    • High-performance whip antenna

    • Works with rechargeable Li-ion battery pack

    • Ergonomically designed body, weighs only 238g inclusive of EBP-101 and antenna

    • Dealer-programmable features including Scans and Tone-signalling

    • Simple, easy-to-use interface

    • Microphone and earphone ports

    • VOX built-in

    • Analog inversion scrambling



    Specifications

    Frequency coverage
    [TX/RX] 16ch PMR446
    Mode
    8K50F3E (NFM)
    Memory channels
    128 channels (16ch x 8groups)
    Frequency stability
    ±2.5 ppm
    Operating voltage
    7.4V battery
    Usable temperature range
    -20~+60°C (-4~140°F)
    Charging temperature range
    +5~+40°C(+41~104°F)
    Dimensions(Projections not included)
    243x59x38mm (with battery pack, antenna)

    Weight
    238 g (with battery pack, antenna)
    Sub audible Tone(CTCSS/DCS)
    encoder/decoder
    Transmitter
    Output power
    Approx.500mW
    Spurious emissions
    Less than -36dBm
    Max.frequency deviation
    ±2.5kHz

    Receiver
    Receive system
    Direct conversion
    Sensitivity(l2dB SINAD)
    -12dBu
    Adjacent Channel Selectivity
    More than 60dB
    Intermodulation
    More than 55dB
    Spurious Rejection
    More than 70dB
    Audio output power
    Audio Power Output 1000mW/10%
