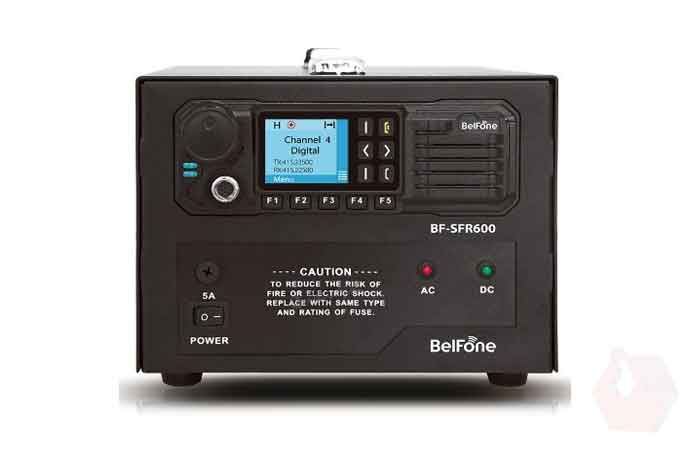

Belfone BF-SFR600 Single Frequency Repeater
BF-SFR600 is our new single frequency repeater solution, which is also able to function as a base station within a system.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Introduction
BF-SFR600 is our new single frequency repeater solution, which is also able to function as a base station within a system. As a single frequency repeater, BF-SFR600 allocates one timeslot to receive signals and the other to transmit at the same frequency, using DMO mode to extend radio coverage. This repeater supports both AC and DC power inputs. When DC power supply is unplugged, the device automatically turns to an AC power source. The two auto-switchable power sources serve as each other’s backup, thus delivering more flexibility and stability. This is a smart and cost-effective choice for commercial users who need extra coverage.
Special Features
DMR Mobile/Repeater
BF-SFR600 can be used both as an ordinary mobile radio and a single frequency repeater. It brings more flexibility and efficiency to your business.
Auto-switch Power Design
High and low power switchable. It chooses high(30W) and low(10W) power output according to the occasion, avoiding unnecessary energy consumption.
Analog/Digital Back-to-Back Interconnect (optional)
It supports different operating modes of analog and digital to interconnect for voice calls, allowing analog users to communicate with digital users and vice-versa.
Specifications
|
General |
|
|
Frequency Range |
VHF: 136-174MH; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz |
|
Channel Capacity |
512 |
|
Zones |
32 |
|
Channel Spacing |
12.5KHz/ 25KHz |
|
Working Voltage |
DC 13.8V (±20%); AC: 110(±15%) or 220V(±15%) optional |
|
Frequency Stability |
±1.5ppm |
|
Antenna Impedance |
50Ω |
|
Dimension |
210(L)* 275(W)* 180(H) mm |
|
Weight |
6.9kg |
|
Receiver |
|
|
Digital Sensitivity |
5% BER: 0.25 uV |
|
Analog Sensitivity |
0.25 uV (12 dB SINAD) |
|
Intermodulation |
60dB |
|
Adjacent Channel Selectivity |
60dB |
|
Spurious Suppression |
70dB |
|
FM Noise |
-40dB |
|
Frequency Response |
+1/-3 dB |
|
Audio Power |
3W |
|
Audio Distortion |
3% (typical) |
|
Conduction Radiation |
-57dBm |
|
GPS Precision Horizontal Accuracy |
Accuracy≤10m (with good signal) |
|
TIFF (first location) Cold Boot |
＜1 minute(with good signal) |
|
TIFF (first location) Hot Boot |
＜10 second (with good signal) |
|
Environmental Specifications |
|
|
Operating Temperature |
-20℃~+70℃ |
|
Storage Temperature |
-40℃~+80℃ |
Frequency Range: VHF
136 – 174Mhz, UHF 350 – 390MHz, 400 – 470MHz
