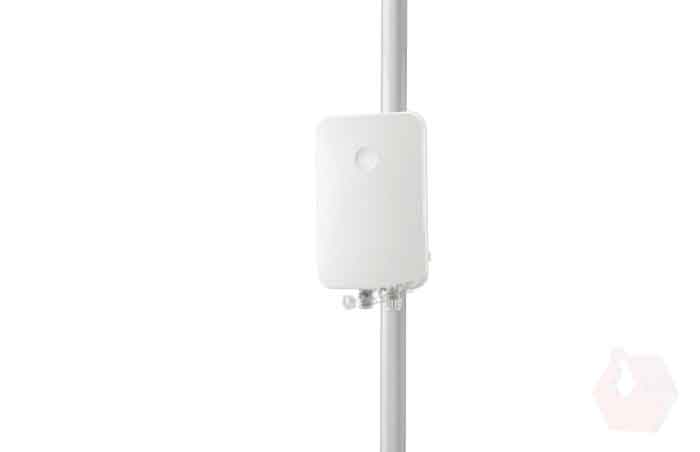

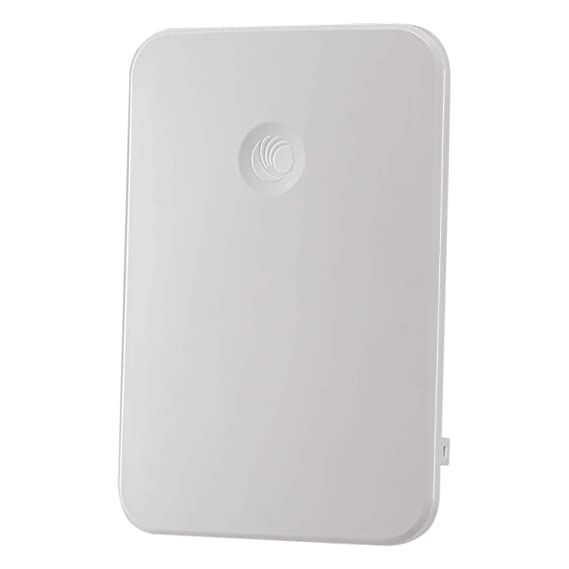

Cambium cnPilot e700
cnPilot e700 Enterprise Outdoor APs feature Gigabit throughput, 802.11ac Wave 2 standard with beam forming for superior outdoor Wi-Fi for enterprise campus, hospitality, higher education and public Wi-Fi applications.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Description
The Cambium cnPilot e700 is the latest product in the Cambium Outdoor Access Point Line-up. The e700 offers greater reach through higher antenna gain, greater client capacity, and faster 802.11ac wave2 technology. This compact, cloud-controlled access point is ideal for public Wi-Fi in capacities such as large area enterprise campuses, higher education campuses, while its resilience allows it to operate in hostile conditions such as marinas, beach resorts, hot deserts, or cold mountains, all without compromising power or speed.
Features
802.11ac, 512 users, 16 SSIDs
UV rated IP-67 enclosure
Operating humidity : 10% to 95%
Electrical heater for cold start
Rugged; ESD protection, Industrial grade
Wi-Fi Features
Controller Modes: Autonomous Controller-less operations (E.g.: roaming), Cloud Managed, On-premise virtualized controller
Secure WLAN: WPA-TKIP, WPA2 AES, 802.1x, 802.11w (Protected Management Frames)
Hotspot 2.0: Passpoint supported
Captive Portal: cnMaestro Controller, Redirection to external RADIUS, Stand-alone AP based, Server DNS logging
Authentication: RADIUS based 802.1x including EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, and EAP-TLS, MAC auth (local database or External RADIUS server)
Accounting: Yes. Supports RADIUS based accounting to multiple AAAs
Scheduled SSID: Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access: Yes. With Active Directory Integration, Vouchers, Rate Limiting, Splash page creation on cnMaestro
VLAN: VLAN pooling, Dynamic VLAN from RADIUS server. VLAN per SSID per user
Data Limiting: Dynamic rate limiting of client traffic per SSID
Subscriber QoS: WMM
Client Isolation: Yes
Controller-less Roaming: Yes. 802.11r, Opportunistic Key Caching supports Enhanced roaming. Disconnect for sticky clients
Airtime Fairness: Yes
Mesh: Multi-hop meshing
ACS: Automatic Channel Selection: autoTune: Autonomous dynamic off-channel scans w/o disconnecting clients. Periodic scans and scheduled scanning
Automatic TX Power Control: autoRF: Autonomous controller-less transmit power control
NAT: Yes
DHCP Server: Yes
Firewall: Yes. NAT logging
ACL, DNS-ACL: Yes. L2, L3 or DNS based access control
Brand Balancing: Yes
Tunneling: L2TP, L2oGRE, PPPoE
Tools: Packet capture, IP connectivity, Wi-Fi analyzer, Sniffer, Auto Logging, Open source ZapD compliant performance test tool
APIs: Presence Location APIs
Designed for the outdoors
802.11ac, 256 users, 16 SSIDs
Omni coverage
UV rated IP-67 enclosure
Max Operating Temp range: -40°C ~ +65°C
Operating humidity : 10% to 95%
Electrical heater for cold start
Ruggedized - ESD protection, Industrial grade components
Packaged with wall mount brackets
Special LTE coexistence filters
315 x 215 x 66 mm | 3.174 lbs (1700 gms)
cnMaestro - WiFi Controller
Guest Access: Custom Splash pages, Vouchers, Social login
Zero-touch Provisioning
Inventory tracking
Map location
Monitoring: key Stats, Alarms
Mass (bulk) upgrade
Integrated troubleshooting: WiFi APs, Clients & Cambium SMs
Available in Cloud or as On-premises (NOC) Virtual controller
Specifications
| Frequency Bands | 2.4 GHz: 2.4 – 2.4835 GHz Channels 1 – 13 (ETSI/CE), Channels 1 – 11 (US) 5 GHz: 5.15 – 5.85 GHz |
| SSID Security | WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open |
| Max SSIDs | 16 |
| Max Concurrent | Clients 512 |
| Max Data Rates | 2.4GHz: 400Mbps, 5GHz: 1733Mbps |
| Ethernet Ports | Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T) |
| Antenna Integrated | Omni |
| Antenna Gain | 8 dBi (2.4 GHz and 5 GHz) |
| Power Consumed | Typical 18W. Max 24.6W |
| Dimensions (cm) | 315 x 215 x 66 mm (without bracket) |
| Weight | 3.174 lbs (1700 gms) without bracket |
cnPilot E700 Outdoor Omni Access Point
