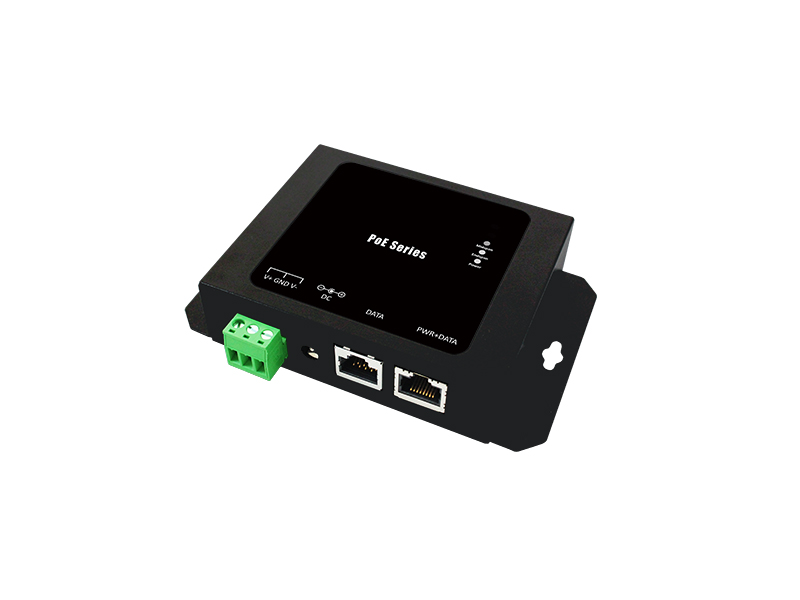

DC-POE injector POE‐DGT-30W CERIO
ERIO POE-DGT-30W is designed to supply operational power to wireless LAN devices such as PoE access point bridges, routers, and surveillance cameras. It greatly simplifies the wiring and deployment process, and brings a great deal of convenience benefits to office and industrial environments
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Introduction
CERIO POE-DGT-30W supports IEEE 802.3af/at Power Over Ethernet Standard. It’s an Active PoE Multi Gigabit PoE+ Injector supports 2 Ethernet ports and provides DC 48-57V over Ethernet cables. It provides Screw Terminal Block and DC In both Power System. User can select either one to supply power. The max. PoE output power up to 30Watt. The POE-DGT-30W can simultaneously transmit network data and power to the PD equipment through the UTP Ethernet Cable transmission. It provides durable and reliable metal casing and wide temperature (-40° ~ 75° C) design, also supports wall-mounting installation, which can meet high-standard industrial environment network construction requirements
Highlight Features
Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3bz 2.5G/5G BASE-T, IEEE 802.3at PoE+, IEEE 802.3af PoE standards.
Supports Multi Gigabit (1/2.5/5Gbps) Ethernet connection ability.
Auto detect PD power supply is powered by End-span (Type-A) or Mid-span (Type-B) power pin, and LED indicators shows power pin type.
Supports IEEE 802.3af/at POE standards and PoE max Power up to 30Watt (IEEE 802.3at) bundle with 56V power supply. This power adapter supports interchangeable plug (optional), which can meet the needs of international power plug applications.
Support PSE / POE Power Over Ethernet function which can provide both data and power for distances of up to 100 meters (328 feet) from the power source when using CAT 5 or up cabling.
Provide Screw Terminal Block and DC In both Power System. User can select either one to supply power.
Supports -40° ~ 75° C wide temperature design which can withstand various high and low temperature environmental applications.
Provides a durable and reliable metal housing design.
Over Current Protection & Short-circuit Protection.
Plug-and-Play, requires no configuration.
Supports desktop, wall mounting installation.
Standards & Hardware Specification
| Standard | IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5G BASE-T IEEE802.3af Power over Ethernet (PoE) IEEE802.3at Power over Ethernet (PoE+) |
| Network Media | 10BASE –T: UTP Cat. 3 or up 100BASE-TX : UTP Cat. 5 or up 1000BASE-T: UTP Cat. 5 or up 2.5G/5G BASE-T : UTP Cat.5e or up |
| Data Transfer Rate | 10M/100M/1G/2.5G/5G (Half-duplex), 20M/200M/2G/5G/10G (Full-duplex) |
| PoE Type | Active POE |
| Data PIN | PIN 1/2,3/6 & 4/5,7/8 |
| Power PIN | End-span (Type-A): PIN 1/2,3/6 |
| Mid-span (Type-B) | PIN 4/5,7/8) |
| Ethernet Connector | RJ-45 x1 : Data RJ-45 x1 : Power + Data |
| Power Interface Output | RJ45 Active 802.3af/at PoE Out |
| Multi Input | DC In or Screw Terminal Block In (STB In) |
| ESD Protection | Supports ESD (Electro Static Discharge) Over Voltage protection and Short Circuit Protection |
Environmental & Mechanical Characteristics
| Max Power Output | 30Watts |
| Power Requirement | 56V 30Watt External Power Supply |
| Input Voltage | 48 ~ 57Volt |
| LED System | Power (Green) x 1 |
| PoE | End-span (Green) , Mid-span (Green ) x 2 |
| Operating Temperature | -40° to 75° C |
| Storage Temperature | -40° to 85° C |
| Operating Humidity | 5% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Dimension ( W x D x H ) | 130 x 82 x 27mm |
| Weight ( g ) | 235g |
| Form Factor | Desktop/Wall mounting installation |
| Case of material | Metal |
| Certifications | FCC ,CE, RoHs compatible |
Application Areas

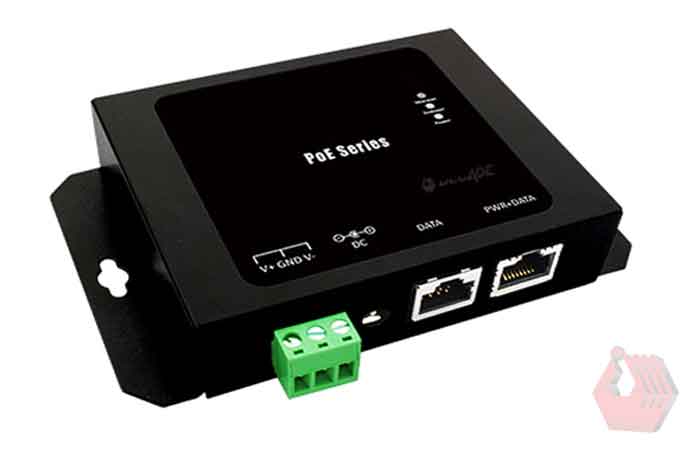

Hardware Overview
