DC POE with Converter 48V DC to 12/24V switchable

    10,000.00 ₨ 10,000.00 ₨ 10000.0 NPR

    10,000.00 ₨

    This combination does not exist.

    Add to Cart

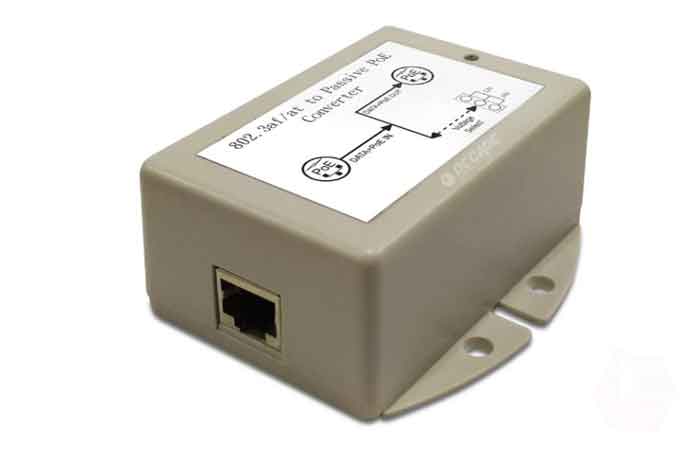

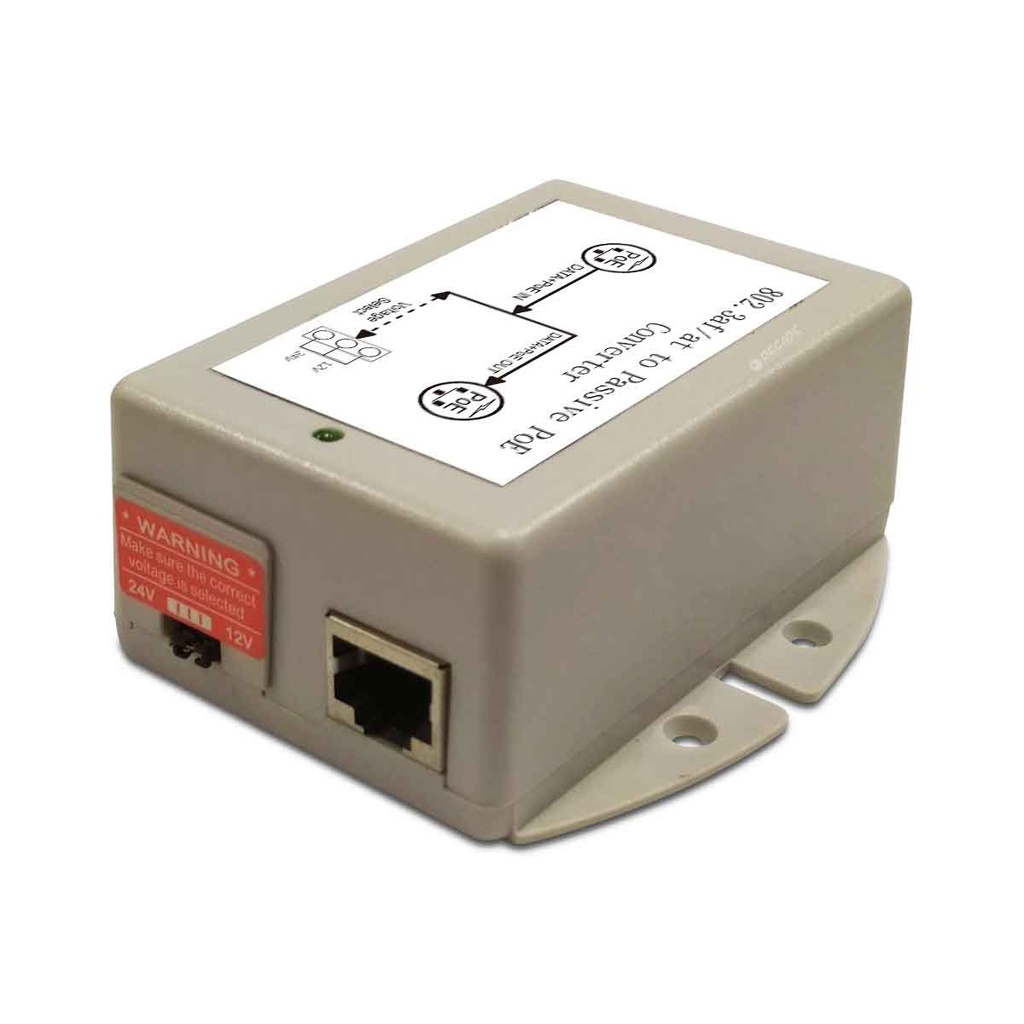

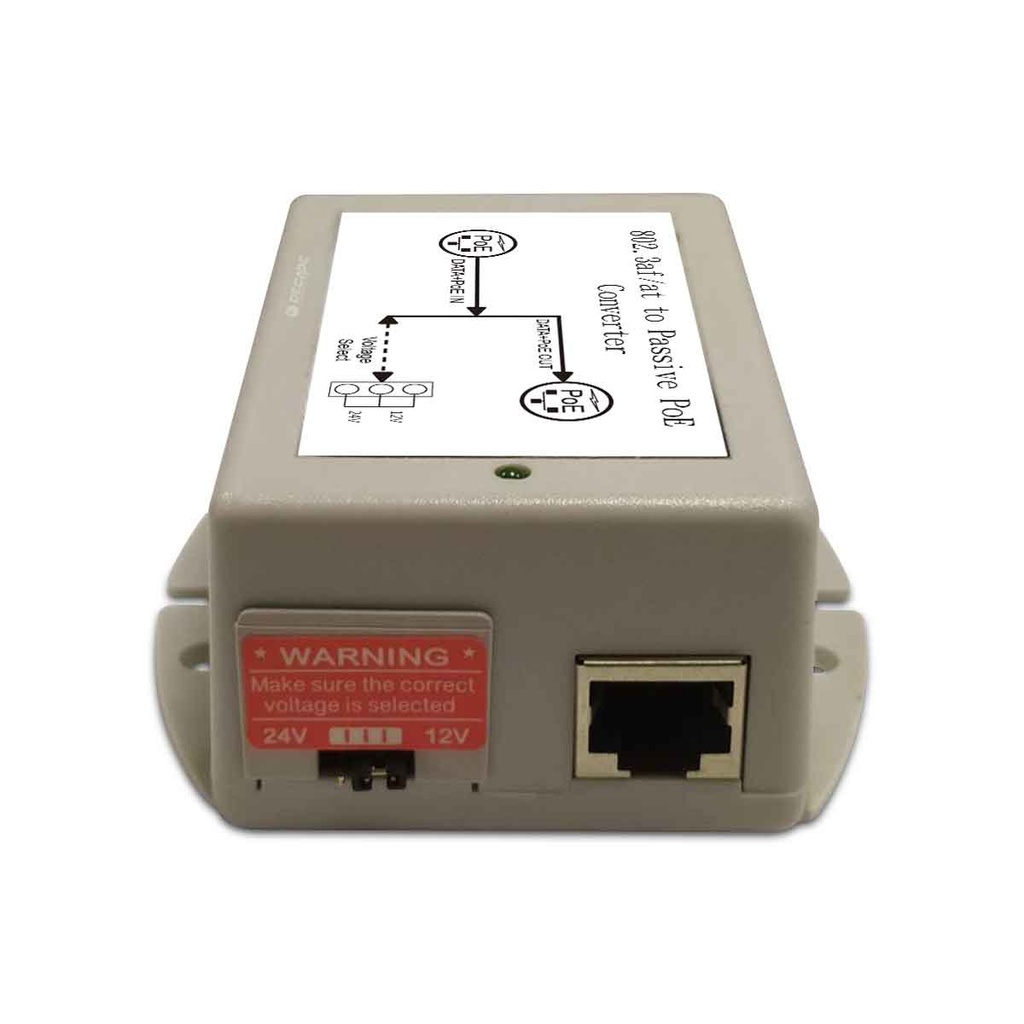

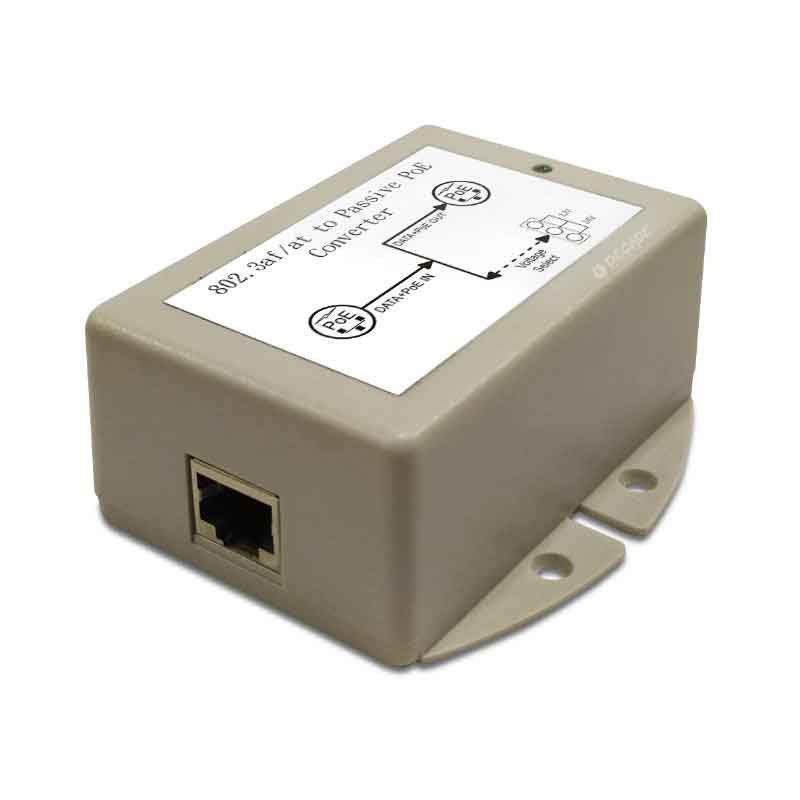

    12W DC/DC PoE Converter with 48V DC PoE Input and 12/24V Switchable Output Voltages


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Usage

    • MSTronic's series of DC to DC converters are a low cost and high reliability solution for those needing to maintain power-cycling control over 12 and 24VDC devices running from a 802.3af switch (such as a Cisco PoE switch)

    • In managed networks Ubiquiti's supplied PoE injectors can be problematic for network managers needing to remotely manage the power-cycling of radios

    • The MIT-22-1224 can be used to convert 802.3af PoE supplied by the managed switch into 24V Passive PoE required by the Ubiquiti device

    • They accept data-in and PoE from a shielded RJ45 Jack and provide data-out and PoE power on the shielded RJ45 output jack.

                       Key Specifications/Special Features
    • INPUT :
      • Input Voltage: DC-36V to DC-60V NORMAL= -48V
      • Under Voltage Lockout: DC-30V
    • OUTPUT :
      • Output voltage and current: +12V / +24V
      • Max load: 1.0A / 0.5A
      • Power: 12W maximum
      • Minimum load: 0A
      • Load regular percentage: 5%
      • Line regular percentage: 1%
      • Ripple percentage: 2%
      • Noise percentage: 5%
      • Total power: 12W
      • Ripple & Noise bandwidth is from DC to 20Mhz.
      • Terminated With a 47uF Capacitor and 0.1uf MPE Capacitor of Proper Polarity.
    • Efficiency: 78% min @-48Vin dc
                       Key Specifications/Special Features
    • Protection:
      • Short Circuit Protection
      • Output Short GND Terminal will not damage the Power Supply and will Auto-Reset
      • Mode is current limits (IO(lim) = io*1.5 max)
      • Operation frequency is 100KHZ
      • Isolation Voltage : 1500Vdc
      • Isolation Resistance :100M ohms (min)
      • Input Set class Resistance : 25K ohms
      • Maximum Capacitive Load : 470UF (24V = 100UF)
    • General description
      • Operating temperature: -25 to 60 degree Celsius
      • Storage temperature: -40 to 85 degree Celsius
      • Operating humidity: 5% - 90%
      • Free air cooling
      • Dimensions: 85*55*36 (L*W*H)m/m
      • EMI: Meet FCC Class B standard, Meet EN55022 Class B standard
      • 802.3af compliant, Mode A or Mode B input are all available.
      • Non-isolated I/O
      • Low-battery protection
      • RJ-45 input (data and power) and RJ-45 output (data and power)
