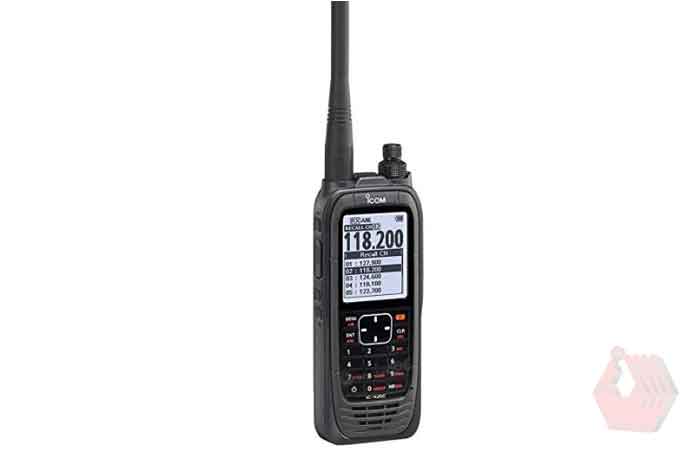

IC-A25NE Transreceiver ICOM Airband

    130,000.00 ₨ 130,000.00 ₨ 130000.0 NPR

    130,000.00 ₨

    This combination does not exist.

    Add to Cart

    The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios.


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Introduction

    The A25 series is a powerful air band handheld with 6 watts of power and an IP57 waterproof rating; weather cannot stop these radios. The handheld includes a large 2350mAh Li-ion battery, providing a long operating time. The easy-to-use interface and large 2.3-inch LCD display combine to provide stress-free programming and in-flight operation. The A25’s large 2.3-inch LCD provide user-friendly, graphic screens. The day mode allows pilots to view the screen in direct sunlight and the night mode makes it easy to read in the dark. Built-in GPS and Bluetooth redefined navigation in the A25N. Design flight plans with an Android or iOS device and import them into the A25 with the Bluetooth feature. While using GPS, the waypoint NAV will guide pilots to their destination. Up to 10 flight plans and 300 waypoints can be stored in the A25. Other navigational features, like VOR indicators, can help keep a pilot’s heading precise and alert them if they divert from course. All these functions and more increase safety up in the air.








    Features:

    IC-A25NEIC-A25NE 8.33kHz/25kHz VHF COM/NAV Airband Radio

    The IC-A25NE is the latest development in airband radio technology featuring built-in Bluetooth, GPS and significant VOR navigation functions. Featuring 6 watts of output power, this stylish modern design, easy-to-use interface and large 2.3-inch LCD combine to provide stress-free programming and easy in-flight operation. The handheld includes a large 2350mAh Li-ion battery, providing longer operating time.

    6 Watts High RF Output Power

    For expanded communication coverage, output power has been increased to approximately 6 W typical (PEP) 1.8 W (carrier) compared to the IC-A24E (5/1.5 W (PEP/carrier)).

    Easy-To-Use Interface

    Often used functions are assigned to the ten-key pad and you can directly access the desired function. The enlarged flat sheet keypad offers smooth and swift operation.



    2.3-inch Large High Visibility LCD

    The large, high contrast and highly visible LCD display user-friendly, graphic screens and ensures good readability under sunlight. The operating frequency in large characters can be recognized at a glance. Also, the night mode option allows for easy viewing in low light conditions.

    “Flip-Flop” Channel Recall

    The IC-A25NE stores the last ten channels used. You can easily recall those channels by using the directional keys or the channel knob or the keypad. This is convenient for switching between several channels, such as NAV and COM channels. You can also freely edit (replace, delete, and change order) the stored recall channels.

    Built-in Bluetooth for Hands-Free Operation

    Hands free operation can be achieved when paired with a compatible third-party wireless Bluetooth headset. When using the optional VS-3 Bluetooth headset, the sidetone function can be used.

    Intelligent Battery with Detailed Battery Information

    The supplied BP-288, 2350 mAh typical intelligent battery pack, provides up to 10.5 hours* of operating time. You can check the condition of the battery pack in the battery status screen. This is very useful for optimum charging and battery health maintenance.

    Specifications

    NAV and/or COM
    COM channels only
    Frequency range
    Tx: 118.000-136.975 MHz
    Rx: 118.000-136.975 MHz
    RX (Weather)
    161.650-163.275 MHz
    Number of memory channels
    300 channels/15 groups
    Channel spacing
    8.33/25 kHz
    Type of emission
    6K00A3E, 5K60A3E, 16K0G3E (Weather)
    Current drain (approximately)
    Tx High: Less than 1.8 A
    Rx Max. audio/Stand-by: Less than 500 mA/90 mA typ.
    Antenna impedance
    50 Ω
    Operating temperature range
    –10°C to +60°C; 14°F to 140°F
    Dimensions (W×H×D) (Projections not included)
    2.3 × 5.8 × 1.3 in, 58.9 × 148.4 × 31.8 mm
    Durable
    Mil-STD-810-C, -D, -E, -F, -G


    Receiver:

    Intermediate frequencies
    46.35 MHz/450 kHz (1st/2nd)
    Sensitivity

    NAV/COM (6 dB S/N): Less than 0 dBμ
    WX (12 dB SINAD): Less than –8 dBμ

    Squelch sensitivity (at threshold)
    Less than 0 dBμ (AM), Less than –5 dBμ (FM)
    Audio output power
    More than 350 mW typ. (8 Ω load/60% Mod. at 10% distortion)
    Hum and noise
    More than 35 dB (at 30% modulation)
    Spurious response
     More than 60 dB (AM), More than 30 dB (FM)
    Hum and noise
    More than 40 dB (at 90% modulation)
    Audio output power
    More than 350 mW typ. (8 Ω load/60% modulation at 10% distortion)
    Ext. speaker connector
    3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
