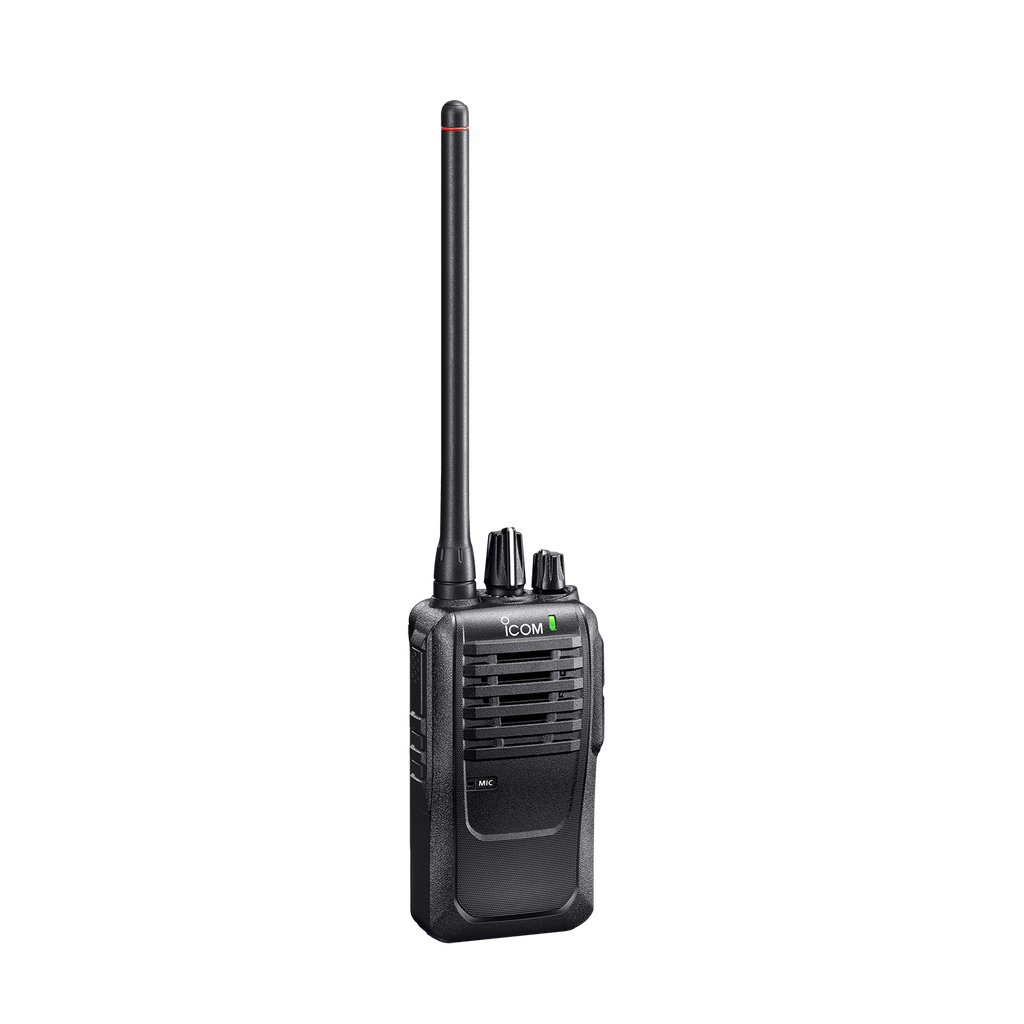

IC-F3003 Transreceiver ICOM VHF

    25,000.00 ₨ 25,000.00 ₨ 25000.0 NPR

    25,000.00 ₨

    This combination does not exist.

    Add to Cart

    Simple operation for instant communication, 800mW (typical) loud and intelligible audio with BTL amplifier and large 45mm speaker,IP54 and MIL-STD-810 rugged body,Low consumption current for longer operating time.


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Introduction

    The Ic-F3003 series is so easy to use there's no special training required. The built-in bridge-tied load amplifier offers powerful 800mW audio output from the large 45mm speaker. The radio has the internal VOX capability for hand-free operation. A new high efficiency FET of the IC-F3003 series reduces consumption current and provides 20 hours of operating time with the BP-265, 2000mAH battery pack.





    Features:

    • Simple operation for instant communication

    • 800mW (typical) loud and intelligible audio with BTL amplifier and large 45mm speaker.

    • IP54 and MIL-STD-810 rugged body

    • Low consumption current for longer operating time

    • CTCSS/DTCS tone encoder/decoder built-in

    • MDC1200 PTT ID and Emergency

    • Internal VOX function

    • (Optional headset and adapter cable required.)

    • Desktop charger, BC-192 and AC adapter BC-147S supplied

    Specifications

    Frequency range
    136 MHz–174 MHz
    Number of memory channels
    16 channels
    Type of emission
    11K0F3E/16K0F3E
    Channel spacing
    12.5 kHz/25 kHz
    Power supply requirement
    7.2 V DC
    Current drain(approximate)
    Tx       High     1.3 A
    Rx       Stand-by   75 mA
    Max. audio   500 mA (Internal SP)
    Antenna impedance
    50 Ω
    Operating temperature range
    –30°C to +60°C, –22°F to +140°F (Radio only)
    Dimensions (W×H×D)(Projections are not included)
    58×111×35.5 mm,2.3 × 4.4 × 1.4 mm (With BP-298)
    Weight (approximate)
    265 g, 9.3 oz (With BP-298)



    Transmitter
    RF output power (at 7.2V DC)
    5 W, 2 W, 1 W (Hi, L2, L1)
    Max. frequency deviation
    ± 5.0 kHz/±2.5 kHz (Wide/Narrow)
    Frequency stability
    ±2.5 ppm
    Spurious emissions
    70 dB (min.)
    Residual modulations
    58/53 dB typical(Wide/Narrow)
    Audio harmonic distortion(AF 1 kHz 40% deviation)
    1.0%/1.5% typical(Wide/Narrow)



    Receiver
    Sensitivity(at 12dB SINAD)
    0.25dBμV (typ.)
    Adjacent channel selectivity (W/M/N)
    78 dB/70 dB (typ.)
    Spurious response rejection
    70dB (min.)
    Intermodulation rejection
    75 dB (typ.)
    AF output power(at 5% distortion )
    Internal SP(With 8Ω load)           1500 mW (typ.)
    External SP(With 8Ω load)          400 mW (typ.)
