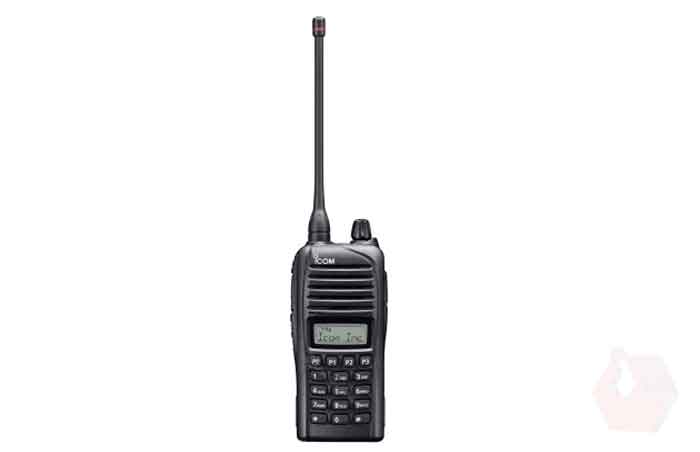

IC-F4032T Transreceiver ICOM UHF
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Information
The IC-F3032T series provides outstanding protection against water and dust equivalent to IP67. The IC-F3032T/S series can withstand 1m depth of water for 30 minutes and its dust-tight construction that prevents the ingress of powder dust, sand, mud and other objects. The supplied waterproof Li-Ion battery pack, BP- 232WP (7.4V, 2350mAh (typ.)), provides 17.5 hours of operating time. The battery has been designed for reliability in extremely cold environments. The IC-F3032T series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication or selective calling. When a matched 2-Tone/5-Tone is received, the following actions are programmable for each code.
Features:
IP67 waterproof and dust-tight protection
The IC-F3032T/S series provides outstanding protection against water and dust equivalent to IP67. The IC-F3032T/S series can withstand 1m depth of water for 30 minutes and its dust-tight construction that prevents the ingress of powder dust, sand, mud and other objects.
Longer Operating Time
The supplied waterproof Li-Ion battery pack, BP- 232WP (7.4V, 2350mAh (typ.)), provides 17.5 hours* of operating time. The battery has been designed for reliability in extremely cold environments.
Selective Calling, Quiet Stand-by and More
The IC-F3032T/S series has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication or selective calling. When a matched 2-Tone/5-Tone is received, the following actions are programmable for each code.
More Features:
Up to 128 memory channel with 8 zones
8-character alphanumeric LCD
8 DTMF autodial memories
Optional HM-168LWP, waterproof speaker-mic
BIIS PTT ID transmission
Low battery alert
2-step power save
PC programmable
Time out timer
Talk around function
Surveillance function
Specifications
General
| Frequency coverage | 400–470MHz |
| Number of channels | 128 channels/8 zones |
| Channel spacing | 25/20/12.5 kHz |
| Type of emission | 16K0F3E/14K0F3E/8K50F3E |
| Current drain | Current drain 1.6A (at 4W) Rx Stand-by 75mA |
| Max. audio | 300mA |
| Dimensions(projections not included; W×H×D) | 53×120×37 mm(With BP-232WP) |
| Weight (approx.) | 310g (With BP-232WP) |
Transmitter
| RF output power (at 7.2V DC) | 4W, 2W, 1W (Hi, L2, L1) |
| Spurious emissions | 0.25μW (≤ 1GHz), 1.0μW (> 1GHz) |
| Frequency stability | ±2.5ppm |
| Audio harmonic distortion | 3% typ. (AF 1kHz 40% deviation) |
| Sensitivity at 20dB SINAD | –4dBμV typ. emf |
| Adjacent channel selectivity (W/M/N) | 75/73/65dB typ. |
| Spurious response rejection | 70dB min. |
| Intermodulation rejection | 67dB typ. |
| AF output power | (at 5% distortion with an 8Ω load) 500mW typ. |
