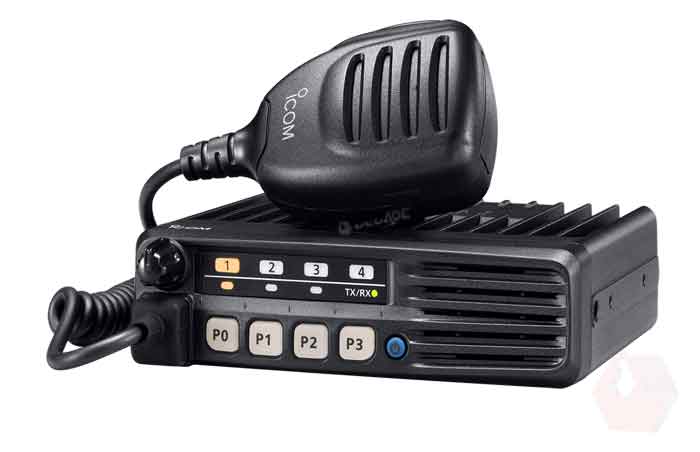

IC-F6013/H ICOM BASE/Mobile UHF

    95,000.00 ₨ 95,000.00 ₨ 95000.0 NPR

    95,000.00 ₨

    This combination does not exist.

    Add to Cart

    Simple Operation, Versatile Functions & Rugged Construction for Your Day-to-Day Communication Needs


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Features:

    Simple Operation for Instant Communication

    The IC-F5013 series has 8 channels. The P0-P3 programmable buttons allows you to customize the radio to suit your needs and convenience.


    Most Popular Signalings Built-in

    Use the built-in 2-Tone, 5-Tone, MDC 1200, CTCSS and DTCS capabilities as standard to set up your own talk groups and quiet stand-by when others are talking.


    Multiple 2-Tone, Multiple 5-Tone

    Up to ten 2-Tone or eight 5-Tone codes can be decoded on a channel. Features such as stun, kill, revive, answer back, auto TX, scan, audio output are programmable to respond to each tone.


    MDC 1200 Compatible

    The IC-F5013 series has a built-in MDC 1200 for transmitting a PTT ID and emergency* signal and for receiving radio check, stun and revive. Assimilate the radio easily into existing MDC 1200 systems.







    Enhanced Scan Features

    The priority scan function allows you to monitor one or two priority channels while scanning other non-priority channels. The Tx channel and talk back functions allow you to make a quick response while scanning.


    Remote Channel Control with Optional ACC Cable

    The optional ACC cable allows you to connect with various external devices to control audio output, modulated signal input, remote channel control, horn honk and many more functions. OPC-1939 is a D-SUB 15-pin type and OPC-2078 is a D-SUB 25-pin type.Built Military Rugged

    The IC-F5013 series is tested to MIL-STD 810 F specifications. The radio is built to survive harsh environment and keep working.

    Other Features

    • 4W (typ.) front mounted speaker

    • Wide frequency coverage (136-174, 400-470 and 450-520MHz)

    • Wide/narrow channel spacing (25, 12.5kHz) programmable

    • Microphone hanger action programmable

    • Optional DTMF microphone (HM-152T)

    • DTMF autodial function

    • PC programmable

    • Talk around function

    • Power-on password function

    • Nuisance delete function

    • Time-out-timer, lock-out penalty timer


    Specifications

    GENERAL

    Frequency coverage
    400-470MHz
    450-520MHz
    Number of channels
    8 channels
    Channel spacing
    12.5/25kHz
    Type of emission
    16K0F3E/11K0F3E
    Current drain(approx.)
    Tx High (25W) 5A
    Rx Stand-by 250mA
    Max. audio
    700mA
    Dimensions(projections not included; W×H×D)
    150×40×117.5 mm;
    5.91×1.57×4.63 in
    Weight
    0.8kg; 1.8lb

    TRANSMITTER

    RF output power
    25W, 10W, 2.5W (Hi, L2, L1)
    Spurious emissions
    70dB (typ.)
    Frequency stability
    ±2.5ppm
    Audio harmonic distortion
    3% typical
    40% deviation
    FM Hum and Noise
    46/40dB typ. (Wide/Narrow)

    RECEIVER

    Sensitivity at 12dB SINAD
    0.25μV (typ.)
    Adjacent channel selectivity (W/N)
    75dB/65dB (typ.)
    Spurious response rejection
    70dB min.
    Intermodulation rejection
    75dB (typ.)
    AF output power(at 5% distortion with an 4Ω load)
    4W (typ.)
