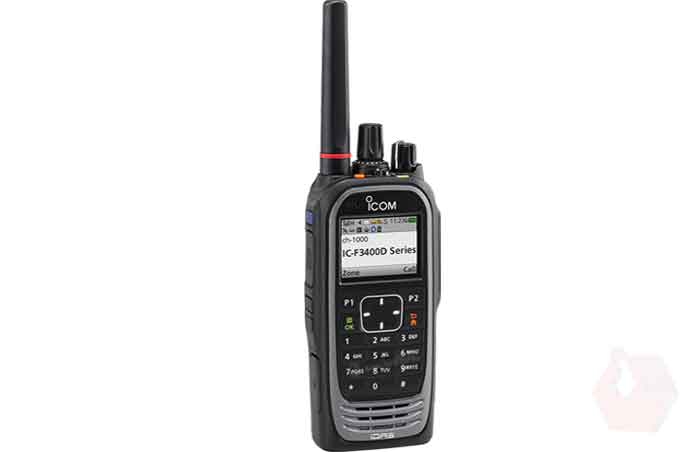

ICOM IC-F3400DT IDAS Transreceiver

    110,000.00 ₨ 110,000.00 ₨ 110000.0 NPR

    110,000.00 ₨

    This combination does not exist.

    Add to Cart

    The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Introduction

    The F3400D series radios is Icom's new flagship IDAS product. Dozens of new features and functions are included all in one new small form factor size. Features like SD Card, USB interface and Bluetooth appear for the first time in this land mobile product. A brilliant color display allows for easy observation of critical information, in the dimmest of light to the brightest of sunshine. Icom is the choice when you want to take your communications.




    Feature:

    • Analog/digital conventional mixed mode operation

    • Upgrade to Type-D trunking

    • Status

    • Text message

    • Radio check

    • Stun, kill and revive

    • Call alert

    • Remote monitor

    • Hands-free communication with built-in Bluetooth®

    • Tile designed keypad increases durability and visibility

    • Transparent data modem can transmit data at 9600bps over the radio

    • Send up to 100 character text messages

    • Programmable alerts can vibrate when a specific user calls

    • Channel voice announcement

    • USB port to connect to a PC

    • Active Noise Canceling

    • Built-in 2-tone, 5-tone, CTCSS, DTCS & MDC1200 in analog

    • 14-pin ACC connector with BTL amplifier output

    • VOX (voice operated transmission) function

    • Tactical group function

    • Normal, priority and voting scan

    • Radio discovery tool software troubleshoots problems with radio communications and incident analysis

    Specifications

    Frequency range (NXDN)
    		136–174MHz
    Frequency range (dPMR)
    		136–174MHz
    Number of channels
    		1024 channels /128 zones
    4000 channels /128 zones (Option*1 )
    32 channels /2 zones (Non-display type)*2
    Type of emission (NXDN)(* Depending on version)
    		16K0F3E*3 , 14K0F3E, 11K0F3E, 8K50F3E ,8K30F1E/D, 4K00F1E/D
    Type of emission (dPMR)(* Depending on version)
    		16K0F3E*3 , 14K0F3E, 8K50F3E, 4K00F1E/D
    Power supply requirement
    		7.5V DC nominal
    Current drain (approx.)
    		Tx (High)     1.5A
    Rx (Max./Standby)
    		580 mA (Internal SP)/140 mA
    Antenna impedance
    		50Ω
    Operating temperature range
    		–30 °C to +60 °C; –22 °F to +140 °F (Radio specifications)
    Dimensions (W×H×D)(Projections not included)
    		53.6 × 123.5 × 29.3 mm;
    2.1 × 4.9 × 1.2 in (with BP-284)
    Weight (approx.)
    		215 g; 7.6 oz (main unit)
    340 g; 12.0 oz
    (with BP-284, MB-133 and FA-S81VS)
    Transmitter
    Output power(Hi, L2, L1)(Depending on version)
    		5 W, 2 W, 1 W
    Frequency stability
    		±1.0ppm
    Spurious emissions
    USA
    EUR

    80 dB typ.
    0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz)
    FM Hum and noise (W/N)
    		55/55 dB typ.
    Audio harmonic distortion(AF 1kHz 40% deviation) 0.5% typ.
    FSK error
    		1% typ. (DVN/DN)

    Receiver
    Sensitivity
    		12dB SINAD 0.22 μV typ.
    20 dB SINAD (W/N) –5.5/–2.5 dBμV emf typ.
    1% BER (DVN/DN) –5.5/–4.0 dBμV emf typ.
    Adjacent channel
    		(W/N)  80/76 dB typ.
    (DVN/DN)   71/70 dB typ.
     Spurious response rejection81 dB typ.
    Intermodulation rejection
    		Analog (USA)   75 dB typ.
     Analog (EUR)   67 dB typ.
    DVN/DN
    		72 dBμV emf typ./  –41 dBm typ.
    Audio output power
    		Internal SP (With 8 Ω load)         1300 mW typ. (at 5% distortion)
    External SP(With 8 Ω load)      1000 mW typ. (at 5% distortion)
