A5x-EF, Mimosa 5GHz Access Point Connectorized for External Antenna, 2x2:2 MIMO OFDM, 2 port PTMP access point with GPS Synchronization, RoW version, PoE Not included
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
With fast client speeds and great access point capacity, along with local and network-wide spectrum reuse, the cost-effective, connectorized A5x delivers fiber-fast connectivity for any unlicensed Fixed Wireless network. The A5x is well suited for short to long-range pole and tower point-to-multipoint (PTMP) applications, access point colocation (GPS sync), and Municipal and Rural Licensed Public Safety multipoint (4.9 GHz; rest-of-world product). In situations where the A5c connectorized 4×4 access point is too much or too powerful, the A5x is the perfect choice.
PTMP ACCESS POINT
Cost-Effectively Expand Your PTMP Network
Compact and powerful, the A5x is built for short to long-range pole and tower point-to-multipoint (PTMP) applications. In situations where the power and range of the 4x4 A5c access point isn't needed, the connectorized, 2x2 A5x is the perfect solution.
PTMP at a Fraction of the Cost
Finding the right access points that offer affordability, without compromising quality and performance, has been a dilemma. The A5x changes that. It's the ideal solution whether you're starting a new network or expanding coverage, all while achieving faster ROI.
Breaking the barriers to entry, the A5x is a connectorized, 2x2 access point that delivers fiber-like speeds of up to 700 Mbps (IP).
Get Around the Noise
With new spectrum becoming available in both 4.9 and 6 GHz, the wide frequency of the A5x (4.9–6.4 GHz with the ROW product) will allow affordable access to more low-noise spectrum for increased speeds and reliability—especially paired with SRS (GPS sync) for channel reuse.

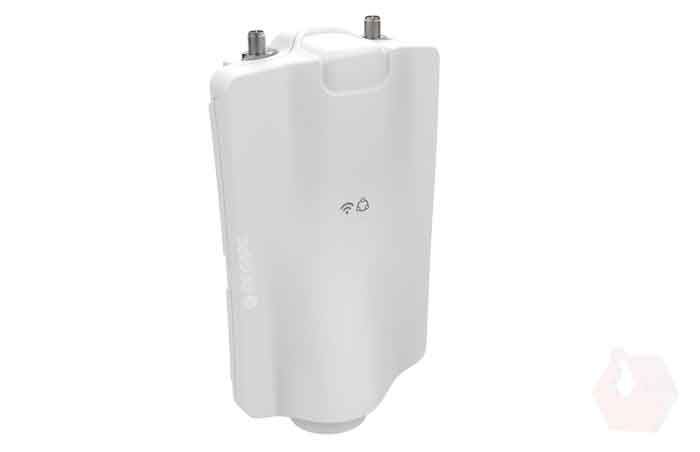

The A5x, with its die-cast aluminum metal backing, is designed and built to withstand the harshest outdoor elements.
|Max Throughput||700 Mbps (IP) PTMP|
|Frequency||5150–5850 MHz FCC/ETSI/CA|
4900–6400 MHz ROW
|Weight||0.30 kg (0.70 lbs)|
|Power Consumption||9-12.9 W|
|Connectors||2 (RP-SMA) (female)|
|Installation and User Guide|
