Mimosa C5-POE-EU Gigabit 48V for C5C Radio

    3,000.00 ₨ 3,000.00 ₨ 3000.0 NPR

    3,000.00 ₨

    This combination does not exist.

    Add to Cart

    The Mimosa C5 is an easy, rugged and blazing fast endpoint client device for the most deployment applications in the highly scalable Mimosa C5 multipoint solution.


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days


    Product Introduction

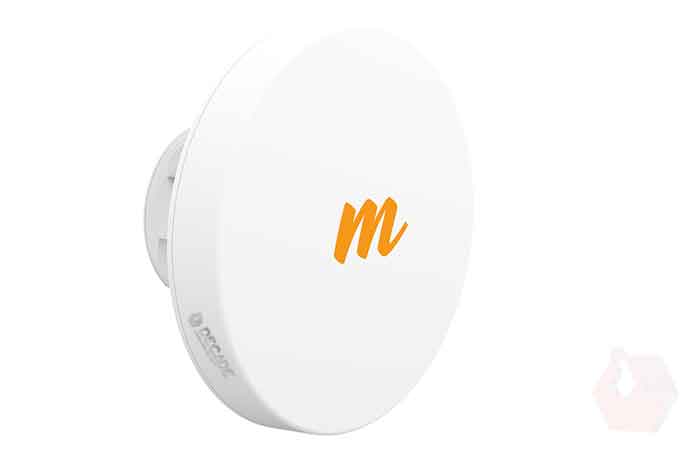

    The Mimosa C5 wireless client bridge is a high gain, high throughput client device that can be dropped into any Wi-Fi-compatible network for receiving long or short distance wi-fi signals. The C5 uses an integrated antenna or connectorized option for longer distance applications. Designed for NLOS applications, it easily attaches to any standard J-mount for typical eave or rooftop mounting. The C5 can also use Mimosa’s customized J-mount accessory for finer adjustment capabilities.



    Application Area



    Professionally installed suburban and rural fixed wireless





    Short to mid-range client endpoint



    Features:




    FIBER SPEED ACCESS AT A FRACTION OF THE COST

    With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.



    FIBER SPEED ACCESS AT A FRACTION OF THE COST

    With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.






    MOUNTING OPTIONS GALORE

    Every installation can be unique, so flexibility in mounting approach is critical. The C5 easily attaches to special designed Mimosa optional mounting accessories*.

    The Mimosa J-mount accessory accommodates most under roof eave mounting applications.

    The Mimosa flexible pole mount accessory accommodates both vertical and horizontal pole mounting applications, as well as basic wall mounting where minimizing the distance os the C5 relative the wall is important.


    *Not included, ordered separately in bulk volumes.

    COMPACT BUT POWERFUL

    The attractive C5 design delivers incredible range with only a 10.25 in (260 mm) diameter integrated antenna. With cutting edge dual 45º slant polarization design and aperture efficiency of greater than 50%, the C5 delivers 20 dBi antenna gain in the smallest design possible.



    TDMA GPS SYNC CLIENT

    Client-side support for the Mimosa C5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point, and can dynamically request upstream bandwidth. As opposed to alternative reserved (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.






    MULTI-USER MIMO

     A key component to scaling network efficiency is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum "spatially" via unique antenna beamforming. Each client device collaborates spatial geographic information with its associated Mimosa C5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.

    WORKING ABOVE THE NOISE

    Advanced Auto-Gain Control (AGC) techniques automatically squelch out underlying interference with only 10 dB operating margin required to deliver incredible client performance.



    RUGGED AND AFFORDABLE

    Protection from harsh environments now comes at an affordable cost. The C5 includes a unique cable boot environment protector and sealing gel, and accommodates installation practices for unterminated and pre-terminated RJ-45 cable connectors.





    Specifications

    Physical

    Dimensions
    Width: 153.31 mm (6.04”)
    Diameter
    260.33 mm (10.25”)
    Weight
    0.72 Kg (1.59 lbs)
    Enclosure Characteristics
    Outdoor UV-stabilized engineered polymer
    Wind Survivability
    200 km/h (125 mph)
    Wind Loading
    39 kg @ 160 km/h (86 lbs @ 100 mph)
    Mounting
    Single pole strap feed point integrated into plastic back plate with integrated curvature for contact with mounting poles. Azimuth and Elevation adjustability only provided via J-Mount and FlexiMount elevation adjustment and hose clamp loosened rotation on the pole.
    Performance
    Max Throughput
    700 Mbps (866 Mbps PHY)
    Low Latency
    8 ms
    Wireless Protocols

    WiFi Interop
    Mimosa SRS

    Modes
    PTMP Client

    Radio
    MIMO & Modulation
    2x2:2 MIMO OFDM up to 256 QAM
    Bandwidth
    20/40/80 MHz channels tunable in 5 MHz increments for GPS Sync; tunable to standard WiFi channels for WiFi Interop
    Frequency Range
    4900-6200 MHz restricted by country of operation (*new* US/FCC 5600-5650 support)
    Max Output Power
    20 dBm
    Sensitivity ( MCS 0 )

    -87 dBm @ 80 MHz
    -90 dBm @ 40 MHz-93 dBm @ 20 MHz

    Antenna

    Gain
    20 dBi
    Beamwidth ( 3dB )
    14° (azimuth and elevation)
    Cross-Polar Isolation
    >20 dB
    Polarization
    Dual 45° slant polarization

    Power

    Max Power Consumption
    7W
    System Power Method
    Passive PoE
    PoE Power Supply
    Passive POE compliant, 48-56 V Power over Ethernet supply (Sold Separately
    Environment
    Operating Temperature
    -40°C to +55°C (-40°F to 131°F)
    Operating Humidity
    5 to 100% condensing
    Operating Altitude
    4420 m (14500') maximum
    Shock & Vibration
    ETS 300-019-2-4 class 4M5

    Features

    Gigabit Ethernet
    10/100/1000-BASE-T
    Management Services
    Mimosa cloud monitoring and management SNMPv2 & Syslog legacy monitoring HTTPS HTML 5 based Web UI
    Smart Spectrum Management
    Smart Spectrum Management
    Dynamic auto-optimization of channel and bandwidth use
    Security
    WPA2 128 bit AES
    QoS
    Supports 4 pre-configured QoS levels

    Regulatory + Compliance



    Approvals
    FCC Part 15.407and Part 90Y, IC RSS210, CE,ETSI 301 893/302 502
    RoHS Compliance
    Yes
    Safety
    UL/EC/EN/ 60950-1 + CSA-22.2
