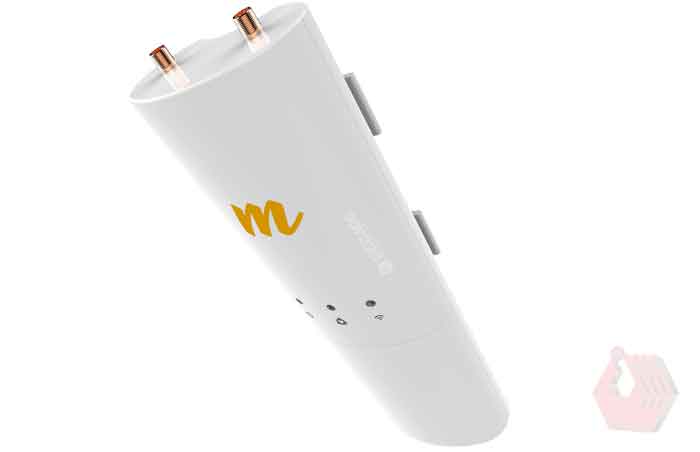

Mimosa C5c
C5c Radio Only - 4.6-6.4 GHz, 27dBm, 802.11ac for PTP and PTMP, nonnecrotized. - POE NOT INCLUDED
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Application
Long-range point-to-point (PTP) backhaul
Rural point-to-multipoint (PTMP) GigaPoP
Suburban MicroPoP when foliage exists
INDUSTRY-LEADING PRICE PERFORMANCE FOR FIXED WIRELESS MARKETS
5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 700 Mbps of TCP throughput.
C5C used at 6500 altitude with -20 degree c temperature with out any problem.
Flexible Antenna Options
Connect to virtually any dual polarization antenna to custom engineer longer distance client links. The C5c has dual RP-SMA connectors for easy cabled antenna connectivity. It can be mounted to any pole via hose clamps or easily clipped onto antennas supporting compatible clip-on mounting bracket systems
Multi-User MIMO
A key component to scaling networks efficiently is leveraging innovative new Multi-User capabilities. With MU-MIMO, multiple clients on the same access point are coordinated by the access point to simultaneously share spectrum “spatially” via unique antenna beamforming. Each client device shares spatial geographic information with its associated Mimosa A5 device to allow coordination of the shared spectrum. This radically improves multipoint access scaling and spectral efficiency.
TDMA GPS Sync Client
The C5c offers client-side support for the Mimosa A5 multipoint GPS sync enabled TDMA protocol. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.
PTP Backhaul Links
The C5c provides extreme price/ performance for PTP backhaul links in a small form factor. Wide frequency range support allows avoidance of crowded 5 GHz spectrum bands. Where regulations allow, long distances are enabled with high system power and flexible antenna options.
SRS Client
The C5c offers client-side support for Mimosa’s proprietary Spectrum Reuse Synchronization (SRS) technology. This ensures each client device precisely receives and transmits under the timing control of the access point and can dynamically request upstream bandwidth. As opposed to alternative (fixed) timeslot protocols, upstream bandwidth and latencies are allocated on demand which enables significantly higher overall upstream network bandwidth utilization.
At The Top Up the Mountain Carrier
Mimosa C5c was successfully installed to connect Amadablam Base Camp (4800 meters) from Pyramid Height (5050 meters). The link delivers internet service to trekkers, climate change researchers, Lodge owners, villagers and Climbing Expedition troops.
ADD SUBSCRIBERS WITH EASE
Auto-Provisioning together with the Mimosa Install App, now dramatically reduces subscriber installation time, automates device provisioning and allows seamless device integration into an ISP network.
SPECTRUM REUSE SYNCHRONIZATION (SRS) CLIENT
In SRS mode, all uplink and downlink transmissions are scheduled by the Access Point (A5/A5c), which greatly improves medium access protocol (MAC) efficiency, allows interference coordination, and reduces jitter. In contrast, in WiFi-Interop mode, clients need to contend with each other to access the channel, which leads to reduced MAC efficiency, higher interference levels, and higher jitter.
| Performance | |
| Max Throughput | PTP/PTMP: 700 Mbps IP (866 Mbps PHY) |
| Wireless Protocols | WiFi Interop Mimosa SRS |
| Modes | PTMP Client PTP Backhaul |
| Radio | |
| MIMO & Modulation | 2x2:2 MIMO OFDM up to 256 QAM |
| Bandwidth* | 20/40/80 MHz channels tunable to 5 MHz increments for Mimosa SRS; Tunable to standard WiFi channels for WiFi Interop |
| Frequency Range | PTMP: 4900-6400 MHz*** PTP: 4900-6400 MHz Restricted by country of operation *new* US/FCC 5600-5650 MHz support FCC DFS (U-NII-2a, U-NII-2c) availability pending certification |
| Max Output Power | 27 dBm |
| Sensitivity ( MCS 0 ) | -87 dBm @ 80 MHz -90 dBm @ 40 MHz -93 dBm @ 20 MHz |
| Power | |
| Max Power Consumption | 9.2 W |
| System Power Method | Passive PoE (24-56 VDC) |
| PoE Power Supply | Passive POE compliant, 48-56 V Power over Ethernet supply (Not Included) |
| Physical | |
| Dimensions | Depth 44 mm (1.73") Width 65 mm (2.56") Height 188.4 mm (7.42") |
| Weight | 295 grams (10.4 oz) |
| Mounting | Single pole strap |
| Connector Type | RP-SMA (x2) |
| Environmental | |
| Outdoor Ingress Protection Rating | IP55 |
| Operating Temperature | -40°C to +55°C (-40°F to 131°F) |
| Operating Humidity | 5 to 100% condensing |
| Operating Altitude | 4420 m (14501') maximum |
| Shock & Vibration | ETS 300-019-2-4 class 4M5 |
| Features | |
| Gigabit Ethernet | 10/100/1000-BASE-T |
| Management Services | Mimosa cloud monitoring and management, SNMPv2 & Syslog legacy monitoring, HTTPS, HTML 5 based Web UI |
| Smart Spectrum Management | Active scan monitors/logs ongoing RF interference across channels (no service impact) Dynamic auto-optimization of channel and bandwidth use |
| Security | WPA2 + Mimosa 802.1x Client** |
| QoS | Supports 4 pre-configured QoS levels |
| Regulatory + Compliance | |
| Approvals | FCC Part 15.407 and Part 90Y, IC RSS210, CE, ETSI 301 893/302 502 |
| Other National Regulations | |
| RoHS Compliance | Yes |
| Safety | UL/EC/EN/ 60950-1 + CSA-22.2 |
* 4.9 GHz uses 20 MHz channel widths (US only, regulations vary by region)
** Enabled in future software release
*** Extended frequency, above 6.2 GHz, requires use of A5/A5c access point with P/N 100-000xx-01
‡ U.S. Pat. No. US 9,001,689 and patents pending.
