Mimosa C5x

    13,500.00 ₨ 13,500.00 ₨ 13500.0 NPR

    13,500.00 ₨

    This combination does not exist.

    Add to Cart

    Speeds of up to 700 Mbps. -PTP or PTMP Modes, -Extended Frequency 4.9–6.4 GHz, -Best-in-Class Noise Immunity -Ultra Rugged, -Low-Power Consumption, -Ultra Reliable (-Four Twist-On, Flexible Antenna Options N5 - 25/20/16/12 dBi)


    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    The Industry’s Most Versatile, Modular Radio

    CLIENT/PTP BACKHAUL

    Mimosa’s integrated C5x radio and modular N5-X antennas provide the ultimate flexibility for PTP and PTMP extended frequency operation.

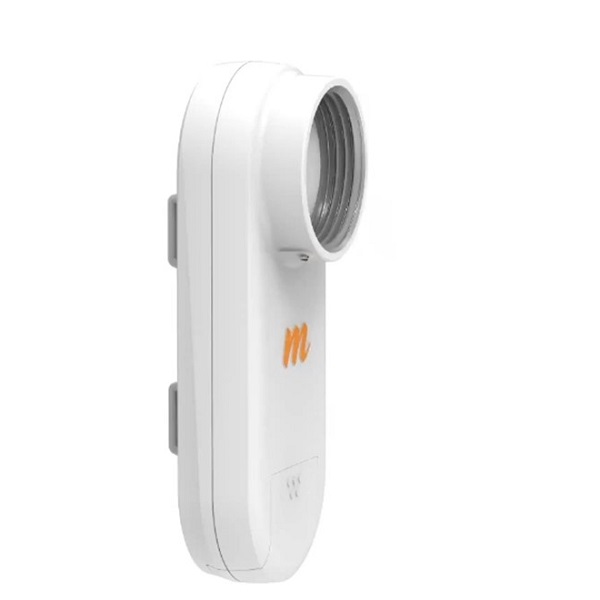

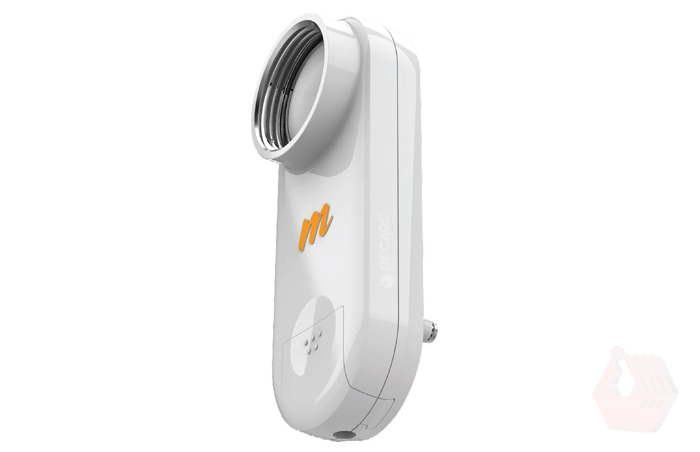

    The Mimosa C5x is the industry’s most versatile, integrated radio with four modular twist-on antenna options. The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with best-in-class noise immunity. Delivering the ultimate in flexibility and cost efficiency, the C5x is the go-to PTP or PTMP solution for 5 GHz deployments..

    Discover more

    THE BASICS

    700Mbps

    Max PTMP/PTP (IP) Throughput

    8–25dBi

    Gain

     4.9–6.4GHz

    Extended Frequency




    PRODUCT

    Integrated Radio with Modular Antenna Options.

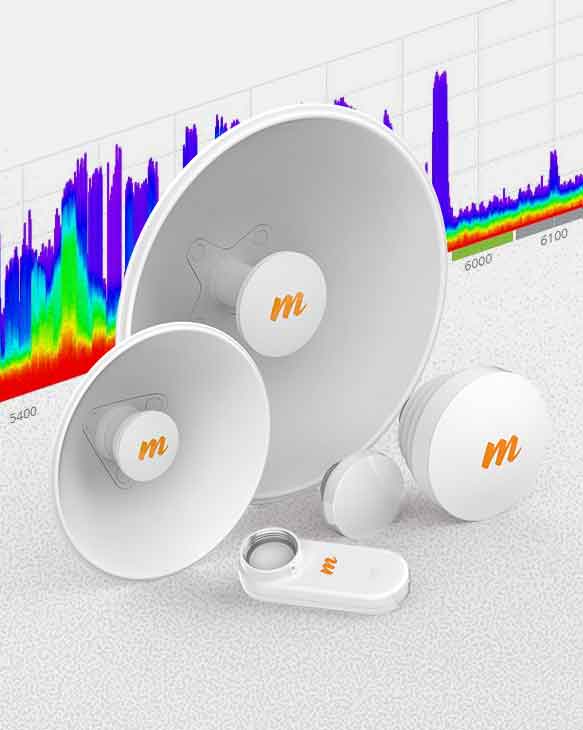

    The C5x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular N5-X twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility.


    N5-X12

    Horn

    12 dBi29 dB F/B27 dB F/S


    N5-X16

    Horn

    16 dBi50 dB F/B43 dB F/S


    N5-X20

    Cassegrain Antenna

    20 dBi35 dB F/B   37 dB F/S

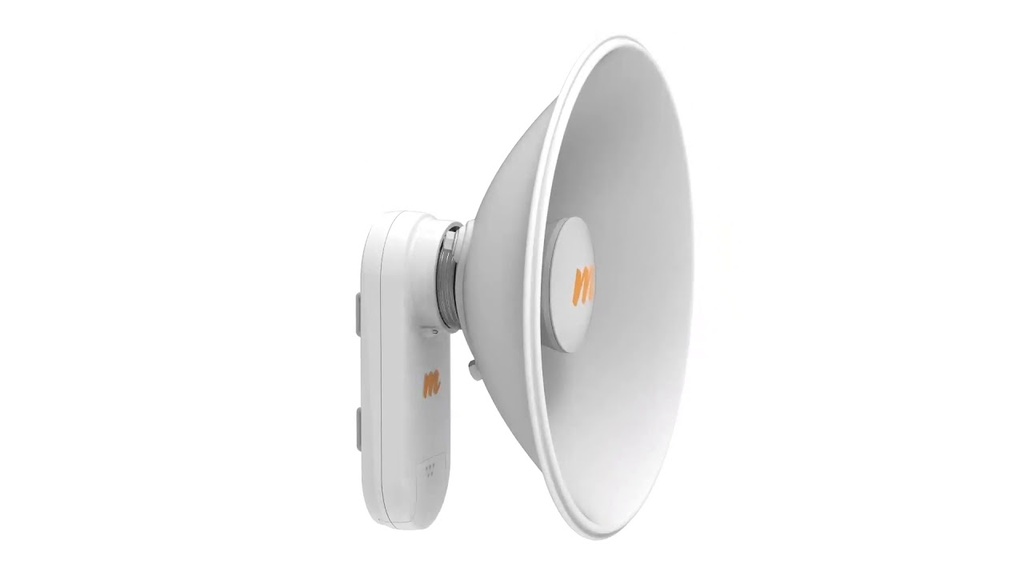

    N5-X25

    Cassegrain Antenna

    25 dBi 40dB F/B>45 dB F/S

    Application

    Broadband Service Provider

    Public Safety Networks

    Enterprise & Campus Connectivity

    Multipoint Distribution for Security

    Smart Cities & WiFi

    VERSATILE

    Reliable, Rugged, and Flexible



    The B5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance from each of the N5-X antennas. With an IP67 rating and extended 4.9–6.4 GHz frequency, you can take it almost anywhere.

    Learn more




    FLEXIBLE

    Incredible RF Performance

    Encased in metal and leveraging custom-designed horn and Cassegrain antennas, the C5x reduces localized noise and provides immunity from interference with breakthrough front-to-back and front-to-side performance. Each antenna in the N5-X family is optimized to isolate noise with incredible sidelobe rejection.

    WIDEBAND

    Extended Frequency


    To escape the noise, the C5x lets you take advantage of both 4.9 GHz public safety applications and licensed frequencies up to 6.4 GHz, where allowed by local regulations. The custom-designed N5-X modular antennas are specifically optimized for C5x extended frequency support.

    DESIGN

    Ultra Rugged

    The C5x, with its die-cast aluminum metal enclosure, dual-pole mounts and industrial-grade, twist-on antenna options, is optimized to reduce noise, withstand the outdoor elements and stay mounted in extreme weather.


    SPECIFICATIONS

    C5x

    Max Throughput

    700 Mbps (IP) PTP or PTMP




    Weight

    0.37 kg (0.82 lbs)




    Gain

    8 dBi (native)
    12–25 dBi (with antennas)




    Build Material

    Die-cast aluminum





    Frequency

    4900–6400 MHz




    Power Consumption

    12.9 W max




    IP Rating

    IP55




    Max Out Power

    27 dBm

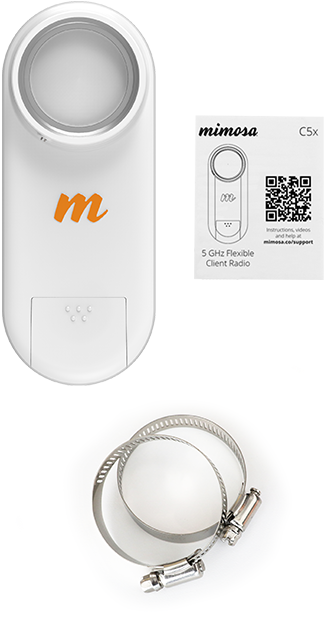

    What's In The Box

    One C5x

    Two Hose Clamps

    Installation and User Guide

    *PoE sold separately
