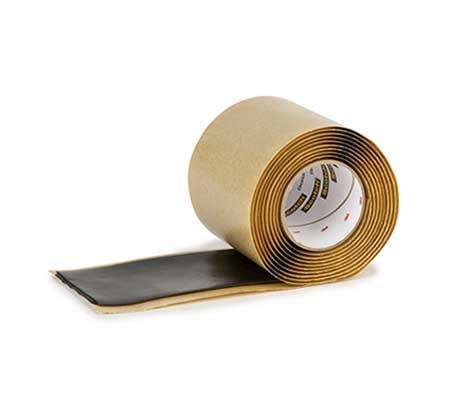

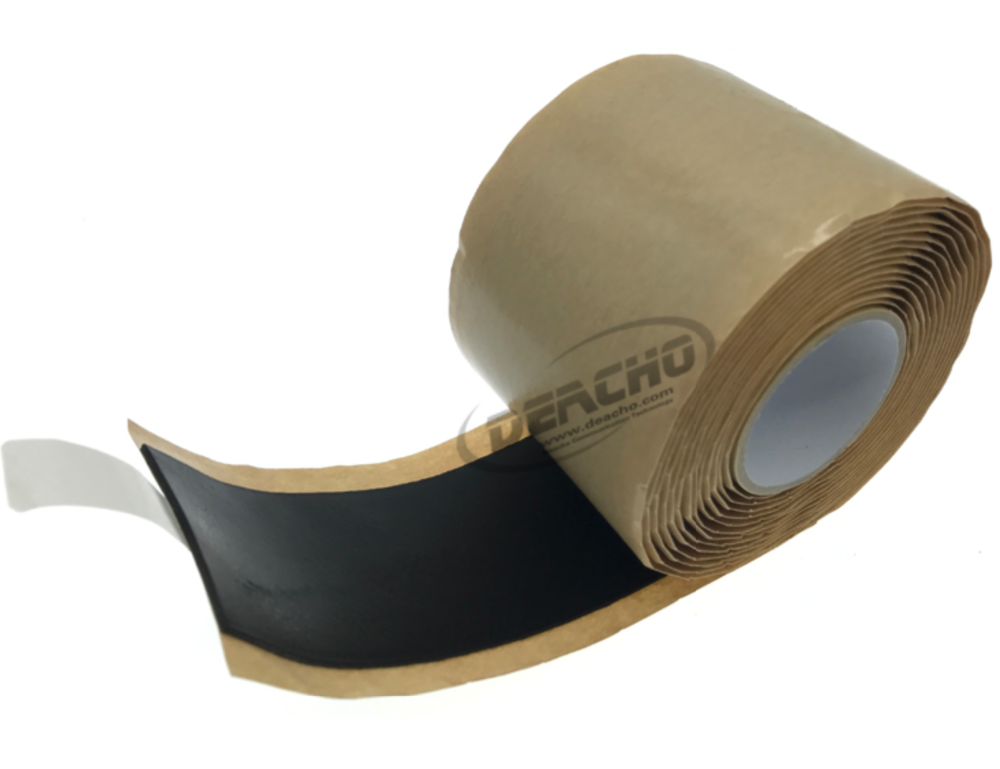

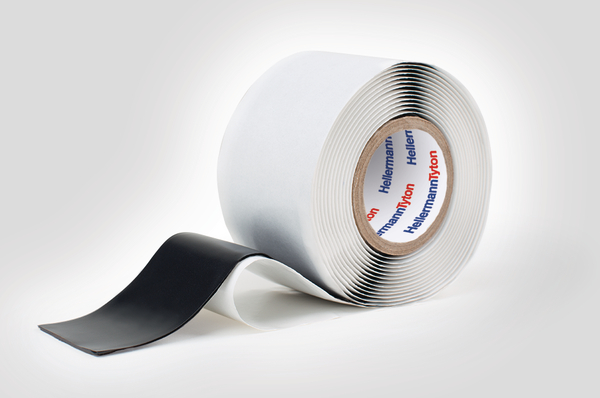

Vinyl mastic compound tape for sealing and insulating
Vinyl Mastic Tape is a self-fusing, rubber based insulating compound, laminated to a flexible, all-weather grade vinyl (PVC) backing.
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Product Description
A self-fusing mastic compound with a premium vinyl backing, which provides excellent electrical properties, superior adhesion, moisture and chemical resistance. Use for insulating overhead and direct buried low voltage connections, motor lead connections, cable and conduit repair. Easy to apply.
Vinyl Mastic Tapes have self-fusing mastic compound with an all-weather, premium vinyl backing that can be used for insulating and water-sealing electrical connections through 600 volts. Small roll sizes can be stretched and molded around irregular shapes, even in tight locations.
Size.
• 38mm x 0.635mm x 6m
• Consult us for other sizes
Performance
|
Properties |
Typical Value |
Test Method/Reference |
|
Adhesion Strength ( to steel plate) |
28.4N/35mm |
ASTM D 1000-10
|
|
Adhesion Strength ( to PE plate) |
27.8N/35mm |
ASTM D 1000-10 |
|
Water Absorption |
0.0049 |
ASTM D 570-98(2010) |
|
Dielectric Strength |
18.6 kV/mm |
ASTM D 1000-10 |
|
Insulation Resistance |
1.7x1013 Ω |
ASTM D 1000-10 |
Application.
For insulating overhead and direct buried low voltage connections, motor lead connections and cable
For splicing and sealing applications in CATV and electrical industries
For conduct repair
About this item
Resistant to abrasion, moisture, alkalies, acid, copper corrosion and varying weather conditions
Self-fusing, rubber based insulating tape with easy application to provide maximum protection
For indoor and outdoor applications, useable from 32F to 100F (0C to 38C), resistant to ultraviolet light
Ideal for bolted connections, service drops, lightning connections, terminal connections, and more
Compatible with thermoplastic rubber wire insulations, and all common solid dielectric cable insulation
Insulation is a composite of an all-weather PVC backing and rubber adhesive and RoHS 2011/65/EU Compliant
